Standard Hydraulic Tipping vs High-Lift Scissor Dumping
Traditional power wheelbarrows dump material onto the ground at grade level. For contractors who need to load trailers, that creates an extra handling cycle.

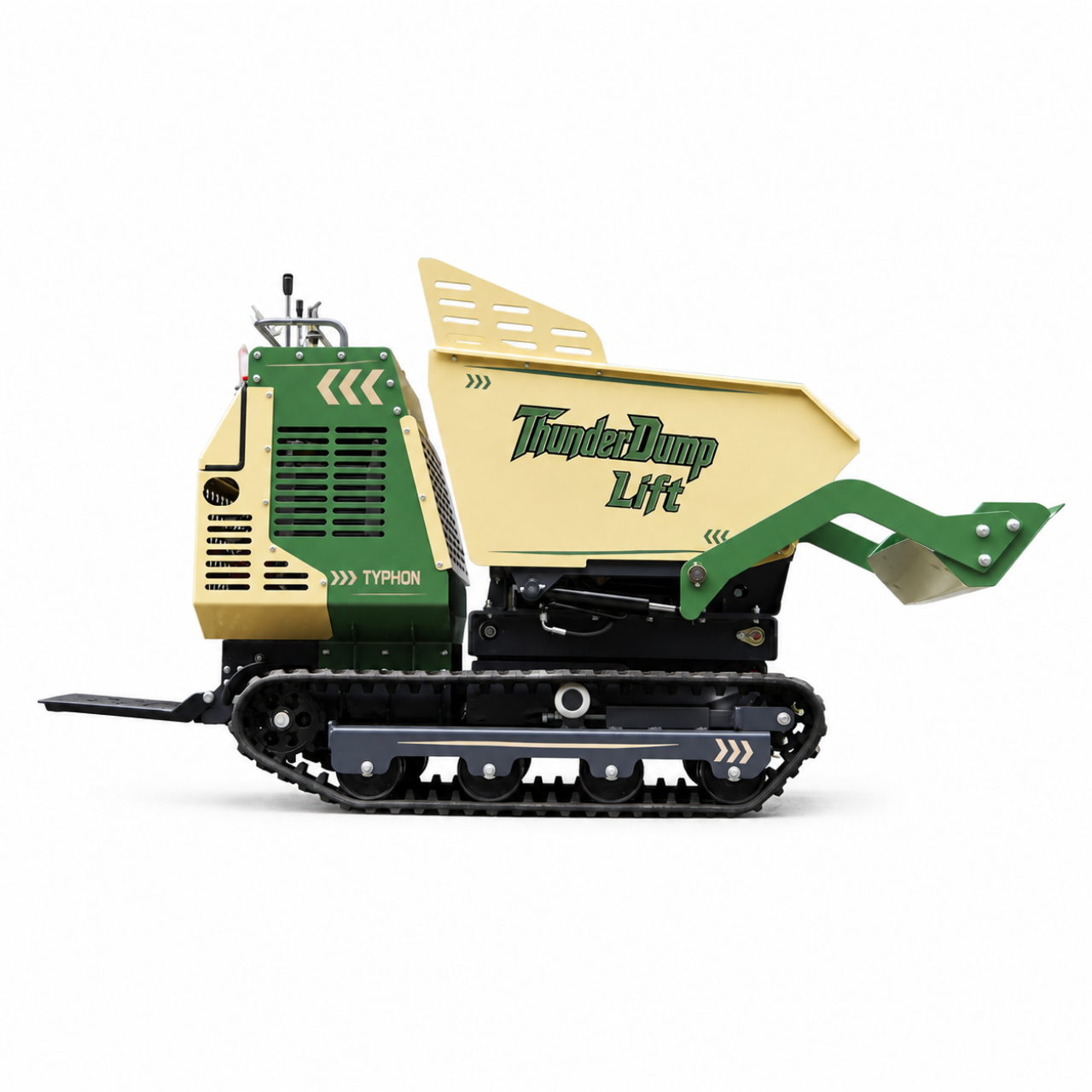

The TYPHON THUNDERDUMP LIFT features a heavy-duty hydraulic pantograph scissor mechanism. When activated, the hopper ascends to a discharge lip height of 59.1 inches (1,500 mm) with a 100-degree tipping angle. This allows operators to discharge 2,205 lbs of soil, concrete, or gravel directly over the sidewall of a dump truck, high-sided utility trailer, or commercial dumpster.
Conversely, the TYPHON THUNDERDUMP 180 focuses on maximum raw ground payload and speed. Utilizing a 6-wheel articulated layout with heavy-duty off-road flotation tires, it carries up to 2,866 lbs (1,300 kg) across open construction sites, farm lanes, and orchards, using a heavy hydraulic tipping ram for rapid ground-level stockpiling.
THUNDERDUMP LIFT: Tracked undercarriage (33.5-inch width) + 59.1-inch scissor lift for truck loading.
THUNDERDUMP 180: 6-wheel terrain chassis (49.2-inch width) + 2,866 lb payload for ground transport.
Both models eliminate wheelbarrow fatigue, moving 5× the volume of a manual wheelbarrow in half the time.
