TYPHON KUVUO 2.7 Cabin Mini Excavator view 1
1/5
KONSTRUCTZ FleetMini ExcavatorsSKU: KUVUO-2-7In Stock • Ships in 1-2 Days

TYPHON KUVUO 2.7 Cabin Mini Excavator

All-Season Climate Cabin Comfort with Retractable Gate-Access Tracks

Operating Weight4,788 lbs2,172 kg / 2.7T Class
Engine ModelKubota D110525 HP Diesel
Cabin TypeEnclosed CabFactory AC & Heat
Track Width39.0–51.2 inHydraulic Retractable
Hydraulic Flow17.91 GPM67.8 L/min @ 20.5 MPa
Max Dump Height8.40 ft2,560 mm
Commercial ProcurementRequest Commercial Quote
Includes Standard Bucket & Hydraulic Thumb
Request Commercial QuoteFull Spec Sheet
Need quick jobsite sizing, freight quote, or wholesale terms?Call (213) 214-2203
1-Year Commercial Warranty
Nationwide Flatbed Delivery
EPA Tier 4 Final Engine
In-Stock Parts & Tech Support
Engineering Architecture

Commercial Overview: KUVUO 2.7 Cabin

The TYPHON KUVUO 2.7 Cabin Mini Excavator is engineered for professional contractors who operate year-round in extreme weather and demanding urban environments. Combining full operator climate control with retractable undercarriage geometry, it delivers true commercial capability in confined residential sites.

Powering the KUVUO 2.7 is the larger Kubota D1105 diesel engine, outputting 25 HP with robust torque reserves. The hydraulic architecture generates 2,973 PSI (20.5 MPa) system pressure with an impressive total hydraulic flow of 17.91 GPM (67.8 L/min), providing rapid cycle speeds and confident auxiliary attachment performance.

The standout engineering highlight is the hydraulic retractable undercarriage. For transport or passing through narrow side gates, the tracks hydraulically retract to 39.0 inches (990 mm). Once in the working zone, the operator expands the tracks to 51.18 inches (1,300 mm), establishing a rock-solid, stable footprint for full 360-degree digging and lifting.

Inside the enclosed cab, operators enjoy automotive-style heating and air conditioning, ergonomic pilot joystick consoles, high-visibility tempered safety glass, and noise insulation — keeping productivity high whether working in 95°F summer heat or sub-freezing winter ground.

Competitive Advantage

Why Contractors Choose the KUVUO 2.7 Cabin

Three critical engineering decisions that translate into lower operating costs and higher jobsite throughput.

All-Weather Enclosed Cabin

Engineering Feature
Factory Air Conditioning & Heating
Technical Reason
Sealed, pressurized steel cab structure with integrated HVAC blower and automotive-grade air filtration.
Practical Contractor Benefit
Operators remain comfortable and alert in extreme cold, pouring rain, or summer heat, eliminating weather downtime.

Hydraulic Retractable Undercarriage

Engineering Feature
39.0 in to 51.18 in Adjustable Width
Technical Reason
Dual internal hydraulic cylinders slide the track frames inward for transit and outward for digging stability.
Practical Contractor Benefit
Squeeze through 40-inch garden gates without removing fences, then expand for maximum tipping stability.

High-Output Kubota D1105 Power

Engineering Feature
25 HP Japanese Diesel & 17.91 GPM Flow
Technical Reason
Larger displacement 1.1-liter diesel paired with a 28 ml/r displacement hydraulic pump delivers 2,973 PSI.
Practical Contractor Benefit
Simultaneous boom, bucket, and swing movements without engine bog-down or hydraulic lag.

High Unloading & Digging Geometry

Engineering Feature
11.48 ft Dig Height & 8.40 ft Dump Height
Technical Reason
Elevated boom hinge placement delivers exceptional vertical clearance for high-sided truck loading.
Practical Contractor Benefit
Easily load soil directly into high-sided dump trailers and 6-yard commercial dumpsters.
Technical Data Sheets

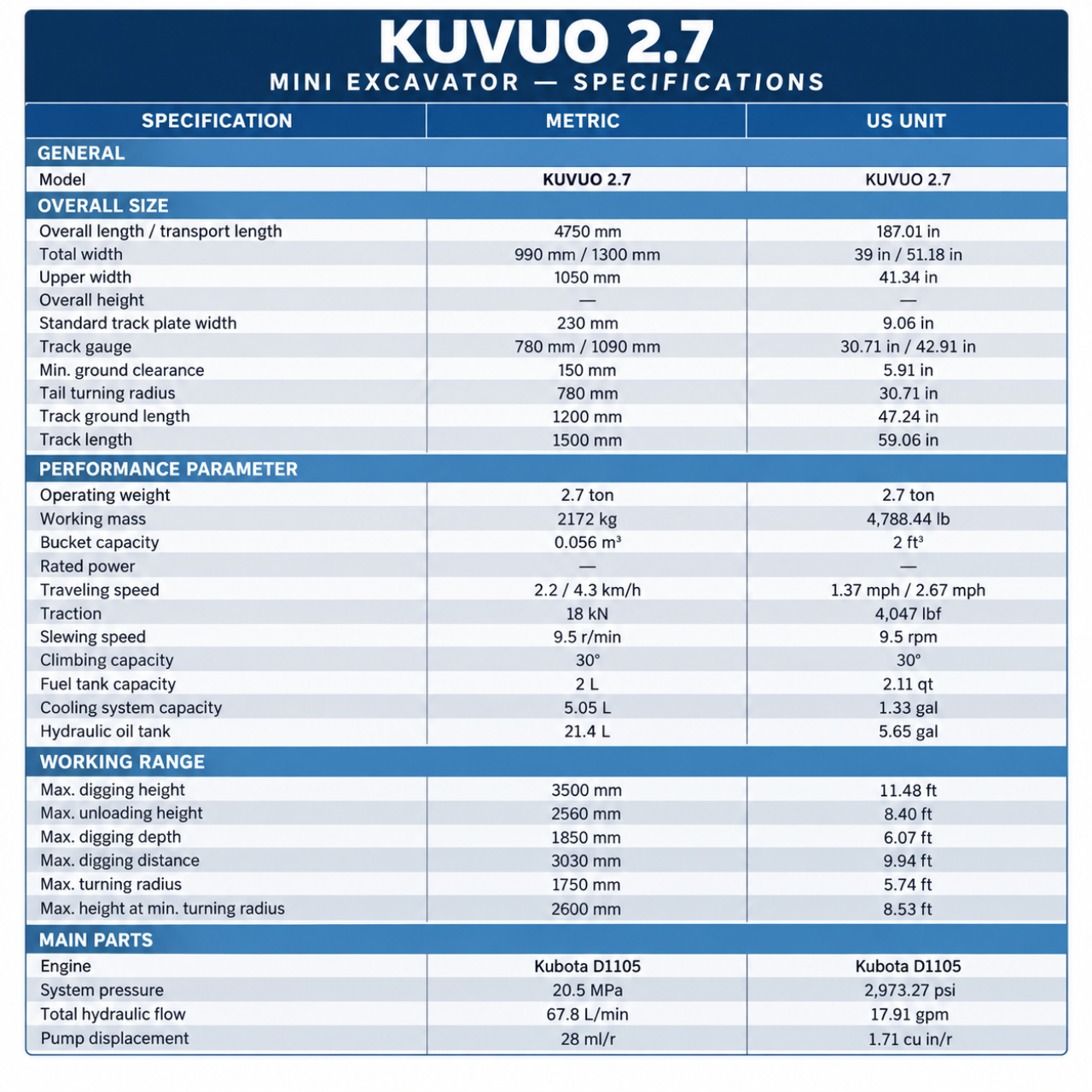

TYPHON KUVUO 2.7 Cabin Mini Excavator Full Specifications

Dual-unit specifications (US Standard primary, Metric secondary) verified for commercial procurement and jobsite validation.

Engine & Powertrain

Engine ModelKubota D1105 Diesel (Japan)
Rated Power25 HP
EmissionsEPA Tier 4 Final
Traction Force4,047 lbf (18 kN)

Hydraulics & Pressure

System Pressure2,973 PSI (20.5 MPa)
Total Flow Rate17.91 GPM (67.8 L/min)
Pump Displacement28 ml/r
Bucket Capacity2 ft³ (0.056 m³)

Working Envelope

Operating Weight4,788.4 lbs (2,172 kg)
Max Digging Depth6.07 ft (1,850 mm)
Max Digging Reach9.94 ft (3,030 mm)
Max Digging Height11.48 ft (3,500 mm)
Max Unloading Height8.40 ft (2,560 mm)
Traveling Speed1.37 / 2.67 mph (2-Speed)

Undercarriage & Cab

Adjustable Track Width39.0 in – 51.18 in (990 – 1,300 mm)
Cabin TypeEnclosed with Factory AC & Heat
Track DriveDual Speed Axial Piston Motors
Logistics & Tooling

Jobsite Footprint & Compatibility

Clear dimension clearances, trailer towing parameters, and auxiliary attachment options.

Dimensions & Access Clearance

Retracted width is just 39.0 inches for gate passage; fully expanded width is 51.18 inches for maximum stability. Overall height with cab is 8.5 feet.

Trailer Towing & Hauling

Weight of 4,788 lbs permits easy transport on standard 7,000–10,000 lb GVWR trailers behind standard pickup trucks.

Compatible Hydraulic Attachments

High auxiliary hydraulic flow (17.91 GPM) supports high-demand attachments including hydraulic thumbs, augers, breakers, and tilt buckets.

Practical Workloads

Where the KUVUO 2.7 Cabin Excels

Common jobsite tasks and industry applications where this machine delivers maximum efficiency.

01

Residential Backyard Utility Installation

Retracts to 39 inches to access backyards through narrow side walkways, then expands to dig gas and power lines.

02

Winter Frozen Ground & All-Season Work

Enclosed heated cabin keeps operators productive during winter pipe repairs and frost excavation.

03

Urban Property Development

Operates cleanly between tightly spaced residential homes where noise insulation and precise boom swing matter.

04

High-Sided Truck Loading

With an 8.4 ft dump clearance, easily tops off dump trucks, high-sided trailers, and roll-off containers.

Ideal Fleets

Built for These Trades & Operators

All-Season Commercial Contractors

Operators requiring heated/cooled cabs to work through winter cold and summer heat waves.

Urban Utility & Electrical Crews

Crews accessing narrow urban parcels through tight gates with retractable tracks.

Rental Fleets & Municipalities

Organizations demanding Kubota reliability, full cab protection, and versatile dimensions.

Model FAQs

TYPHON KUVUO 2.7 Cabin Mini Excavator Technical Inquiries

Detailed answers on hydraulics, fluid maintenance, transport, and operation.

Does the KUVUO 2.7 cab have both air conditioning and heating?
Yes. The KUVUO 2.7 features a fully sealed cabin with automotive-style HVAC offering both high-output air conditioning and engine-coolant heating.
How do the retractable tracks work on the KUVUO 2.7?
A hydraulic control lever inside the cab expands or retracts the tracks between 39.0 inches (for gate access) and 51.18 inches (for excavation stability) in seconds.
What engine powers the KUVUO 2.7?
The machine is powered by a commercial Japanese Kubota D1105 3-cylinder diesel engine outputting 25 HP.
Can the KUVUO 2.7 load standard dump trucks?
Yes. With a maximum unloading height of 8.40 ft (2,560 mm) and a maximum digging height of 11.48 ft, it easily discharges into standard dump trucks and trailers.
Is the KUVUO 2.7 a 2-speed travel machine?
Yes. It features dual-speed travel (1.37 mph low / 2.67 mph high) for efficient jobsite tramming.
Fleet Synergy

Related & Complementary Equipment

Consider pairing the KUVUO 2.7 Cabin with these complementary units for higher jobsite autonomy.

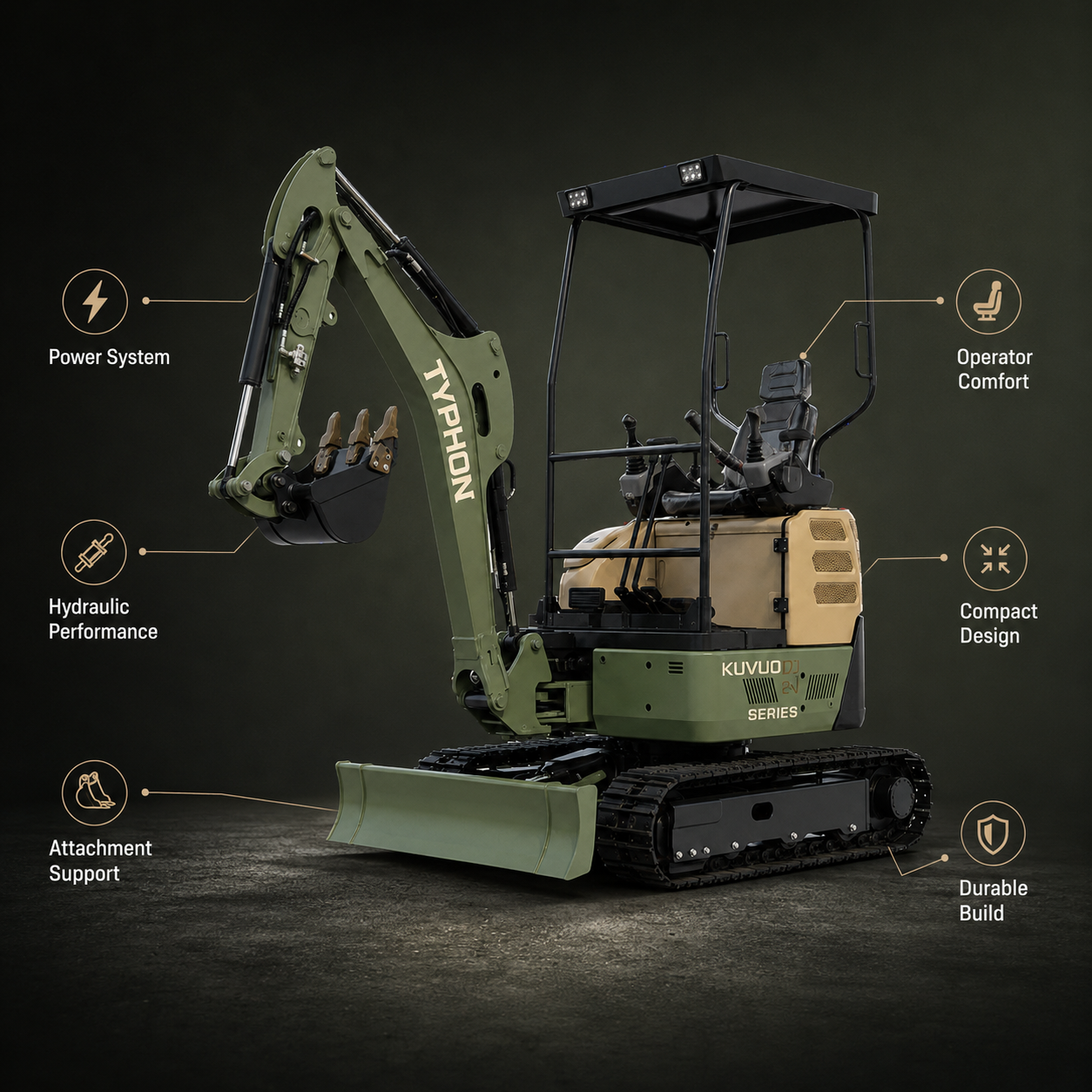

TYPHON KUVUO 2.5
