TYPHON KUVUO 2.5 Mini Excavator view 1
1/3
KONSTRUCTZ FleetMini ExcavatorsSKU: KUVUO-2-5In Stock • Ships in 1-2 Days

TYPHON KUVUO 2.5 Mini Excavator

Maximum Digging Reach & Depth in a 2.5-Ton Transportable Platform

Operating Weight5,510 lbs2,500 kg
Engine ModelKubota D90220 HP @ 2,300 RPM
Max Digging Depth8.2 ft2,500 mm
Max Digging Reach14.1 ft4,300 mm
Boom SwingL 75° / R 45°Offset Digging
Travel Speed1.8 mph2.9 km/h
Commercial ProcurementRequest Commercial Quote
Includes Standard Bucket & Hydraulic Thumb
Request Commercial QuoteFull Spec Sheet
Need quick jobsite sizing, freight quote, or wholesale terms?Call (213) 214-2203
1-Year Commercial Warranty
Nationwide Flatbed Delivery
EPA Tier 4 Final Engine
In-Stock Parts & Tech Support
Engineering Architecture

Commercial Overview: KUVUO 2.5

The TYPHON KUVUO 2.5 is positioned as the deep-reach champion in the KONSTRUCTZ compact excavation lineup. Weighing in at 5,510 lbs (2,500 kg), this machine bridges the gap between ultra-compact backyard diggers and heavy commercial excavators.

At the mechanical core is the proven Japanese Kubota D902 three-cylinder diesel engine producing 20 HP at 2,300 RPM. This industrial powerplant drives a high-pressure hydraulic circuit delivering smooth, multi-function metering for simultaneous boom, arm, bucket, and slew operations.

The true competitive advantage of the KUVUO 2.5 is its extended geometry: an 8.2 ft (2,500 mm) maximum digging depth and 14.1 ft (4,300 mm) ground-level reach. Operators can excavate deep sewer connections, basement egress window wells, and deep foundation footings with fewer machine repositioning moves.

An independent boom swing mechanism allows the arm to articulate 75 degrees to the left and 45 degrees to the right, enabling clean, straight trenching directly parallel to building foundations, fence posts, and concrete borders without repositioning the tracks.

Competitive Advantage

Why Contractors Choose the KUVUO 2.5

Three critical engineering decisions that translate into lower operating costs and higher jobsite throughput.

Extended Digging Envelope

Engineering Feature
8.2 ft Digging Depth & 14.1 ft Reach
Technical Reason
Optimized boom-to-dipper arm geometry maximizes vertical and horizontal reach without compromising hydraulic breakout force.
Practical Contractor Benefit
Dig deeper utility and drainage trenches with fewer machine setups, accelerating job completion times.

Japanese Kubota D902 Power

Engineering Feature
Tier 4 EPA Diesel Engine (20 HP)
Technical Reason
Three-cylinder liquid-cooled diesel architecture delivers high torque at lower operating RPM for minimal engine wear and low fuel burn.
Practical Contractor Benefit
Proven domestic U.S. parts availability, long service intervals, and dependable cold-weather starting.

Independent Boom Swing

Engineering Feature
75° Left / 45° Right Boom Articulation
Technical Reason
Dedicated hydraulic swing cylinder pivots the working boom independently of the main rotating house structure.
Practical Contractor Benefit
Trench tight against property lines, concrete footings, and fence perimeters with zero house collision risk.

Heavy-Duty Rubber Tracks

Engineering Feature
Continuous Steel-Core Rubber Tracks
Technical Reason
Wide track pads disperse the 5,510 lb machine mass over an extended footprint for low ground pressure.
Practical Contractor Benefit
Cross finished turf, asphalt driveways, and soft loam without creating destructive ruts or track marks.
Technical Data Sheets

TYPHON KUVUO 2.5 Mini Excavator Full Specifications

Dual-unit specifications (US Standard primary, Metric secondary) verified for commercial procurement and jobsite validation.

Engine & Powertrain

Engine ModelKubota D902 Diesel (Japan)
Engine Type3-Cylinder, Liquid-Cooled, 4-Cycle
Rated Power20 HP @ 2,300 RPM
Emission StandardEPA Tier 4 Final

Working Envelope & Performance

Operating Weight5,510 lbs (2,500 kg)
Max Digging Depth8.2 ft (2,500 mm)
Max Digging Reach14.1 ft (4,300 mm)
Boom Swing AngleLeft 75° / Right 45°
Travel Speed1.8 mph (2.9 km/h)

Operator Station & Undercarriage

Canopy StructureROPS / TOPS Certified Open Canopy
Track TypeContinuous Rubber Crawler Tracks
Control SystemHydraulic Pilot Joystick Controls
Logistics & Tooling

Jobsite Footprint & Compatibility

Clear dimension clearances, trailer towing parameters, and auxiliary attachment options.

Dimensions & Access Clearance

With an operating weight of 5,510 lbs and compact exterior dimensions, the KUVUO 2.5 balances deep reach with manageable site positioning. The machine tracks provide excellent stability while maintaining agility on residential parcels.

Trailer Towing & Hauling

Tows legally on standard 7,000–10,000 lb GVWR tandem-axle utility trailers behind standard 3/4-ton pickup trucks. No special oversize permits or CDL commercial transport required.

Compatible Hydraulic Attachments

Equipped with standard auxiliary hydraulic ports supporting pin-on and quick-attach tooling for 2.5-ton excavators.

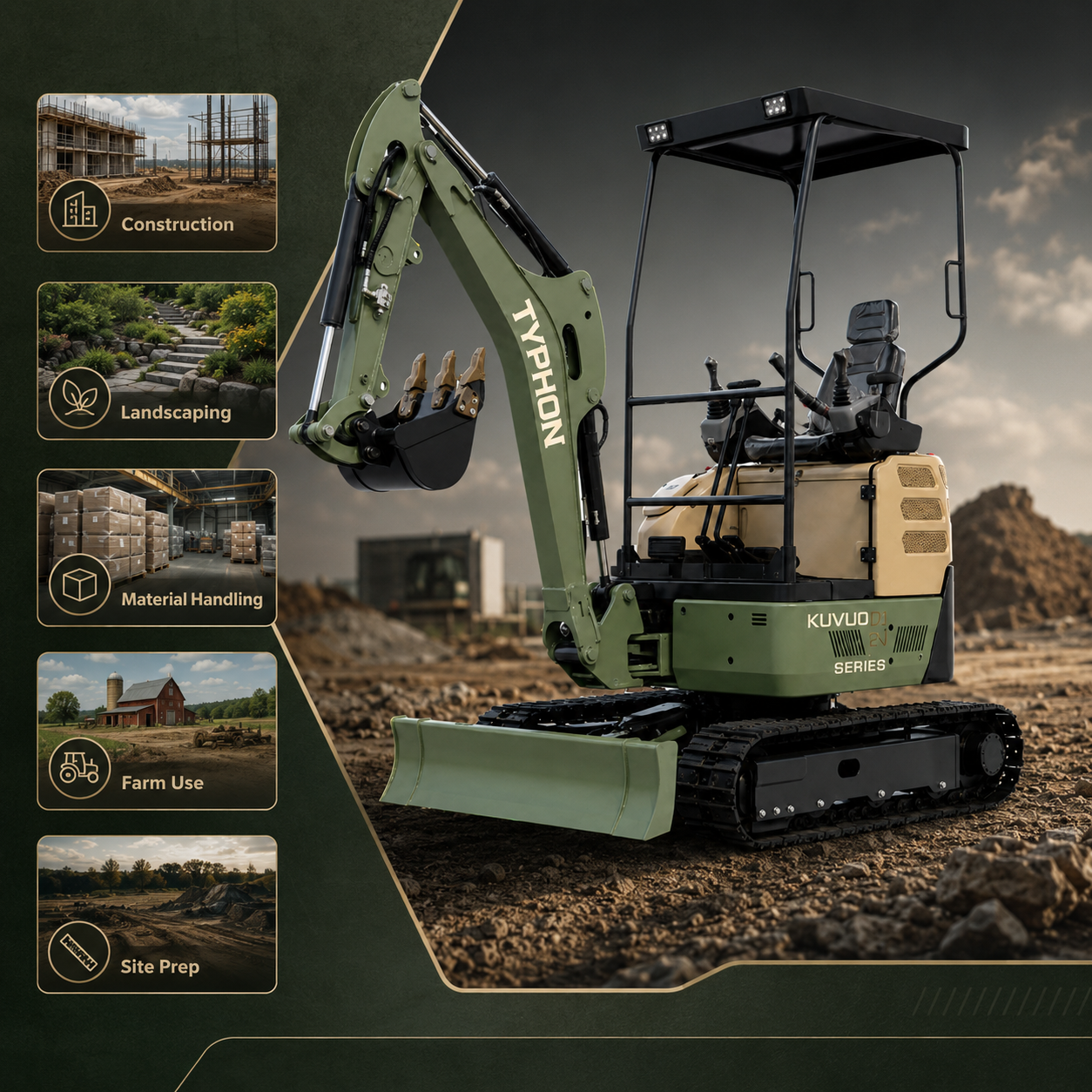

Practical Workloads

Where the KUVUO 2.5 Excels

Common jobsite tasks and industry applications where this machine delivers maximum efficiency.

01

Deep Sewer & Water Line Trenching

Reaches below regional frost lines down to 8.2 feet to install sanitary sewer feeds and main water service pipes.

02

Basement Egress & Window Well Excavation

Digs deep window well shafts and exterior walk-out basement stairwells tight against residential foundation walls.

03

Commercial Foundation Footings

Excavates continuous perimeter grade beams and structural column footings for residential and light commercial builds.

04

Septic Tank & Drainfield Installation

Excavates full-size septic holding tanks and trenches distribution lines across farm and rural properties.

Ideal Fleets

Built for These Trades & Operators

Utility & Plumbing Contractors

Contractors requiring genuine 8-foot trench depth for water mains, sewers, and gas services.

General & Foundation Contractors

Builders excavating residential footings, retaining walls, and walk-out additions.

Agricultural & Farm Operations

Farm owners maintaining deep drainage ditches, culvert pipes, and irrigation networks.

Model FAQs

TYPHON KUVUO 2.5 Mini Excavator Technical Inquiries

Detailed answers on hydraulics, fluid maintenance, transport, and operation.

How deep can the KUVUO 2.5 dig?
The KUVUO 2.5 reaches a maximum digging depth of 8.2 ft (2,500 mm) with a maximum reach of 14.1 ft (4,300 mm), making it the deepest-digging machine in the KONSTRUCTZ series.
What engine is in the KUVUO 2.5?
The KUVUO 2.5 is powered by a genuine Japanese Kubota D902 3-cylinder diesel engine delivering 20 HP at 2,300 RPM.
Can I tow the KUVUO 2.5 with a half-ton or three-quarter ton truck?
At 5,510 lbs operating weight plus trailer, a 3/4-ton truck (e.g. F-250, 2500) is recommended for comfortable, legal highway towing on a standard tandem-axle trailer.
Does the KUVUO 2.5 have auxiliary hydraulics for attachments?
Yes. Standard auxiliary hydraulic plumbing is routed down the boom to power hydraulic thumbs, augers, grading buckets, and breakers.
How does the boom swing benefit tight jobsites?
The boom swing articulates 75° left and 45° right, allowing you to dig right along walls and fences without rotating the house structure into obstacles.
