TYPHON StoneKrusher K1 – KONSTRUCTZ Series view 1
1/5
KONSTRUCTZ FleetStone CrushersSKU: STONEKRUSHER-K1In Stock • Ships in 1-2 Days

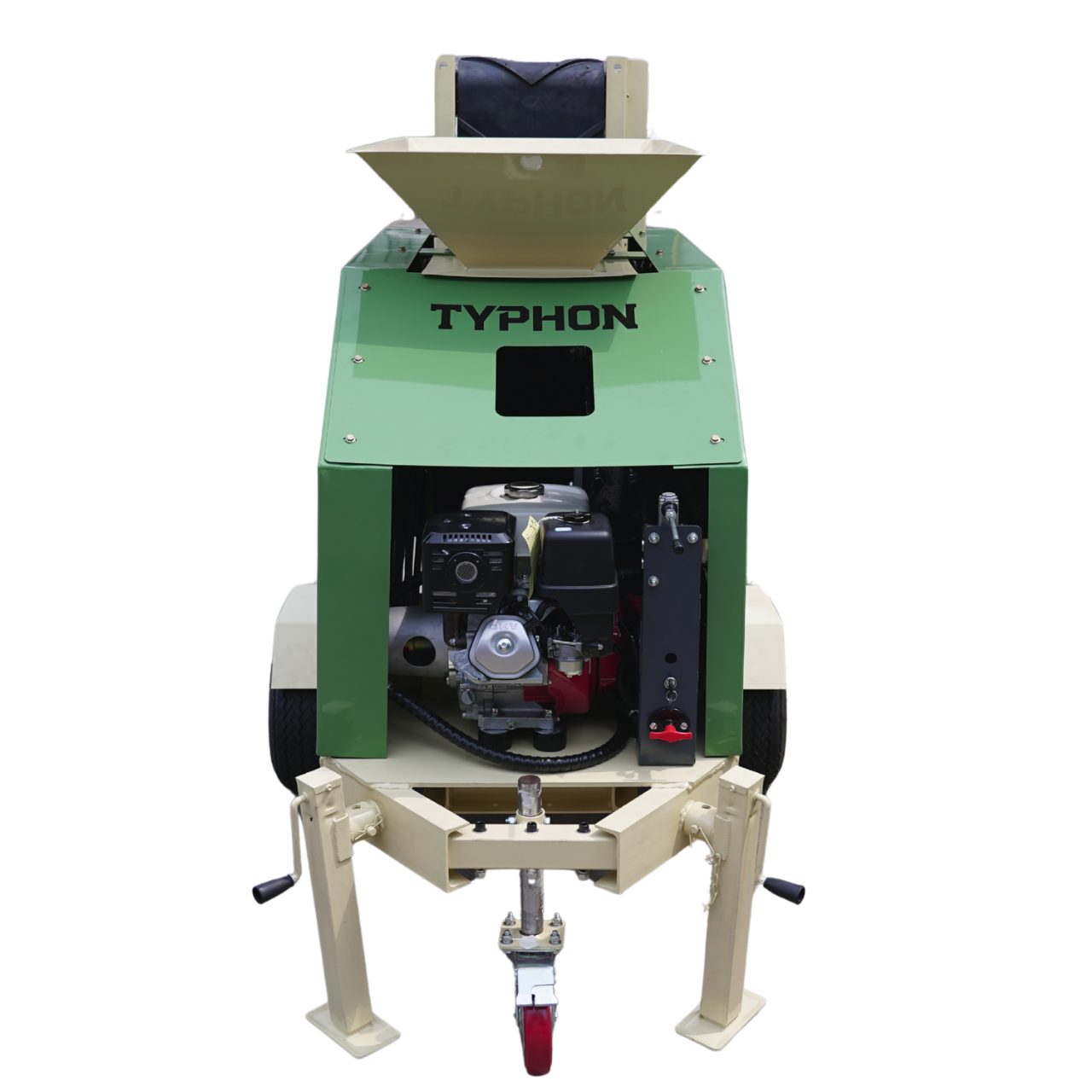

TYPHON StoneKrusher K1 – KONSTRUCTZ Series

Towable Compact Jaw Crusher for On-Site Residential Rubble Recycling

Operating Weight2,205 lbs1,000 kg / 1 Ton
Engine ModelHonda GX39011.7 HP Gasoline
Production Capacity2 to 4 Tons/hr4,409–8,818 lb/h
Feed Inlet Size5.91 × 9.84 in150 × 250 mm
Output Aggregate0.20–1.0 in5–25 mm Range
Mobility TypeTowable HitchStandard Trailer Coupler
Commercial ProcurementRequest Commercial Quote
Includes Standard Bucket & Hydraulic Thumb
Request Commercial QuoteFull Spec Sheet
Need quick jobsite sizing, freight quote, or wholesale terms?Call (213) 214-2203
1-Year Commercial Warranty
Nationwide Flatbed Delivery
EPA Tier 4 Final Engine
In-Stock Parts & Tech Support
Engineering Architecture

Commercial Overview: StoneKrusher K1

The TYPHON StoneKrusher K1 is the entry-level mobile jaw crusher in the KONSTRUCTZ recycling machinery lineup. Weighing exactly 2,205 lbs (1,000 kg), it is engineered for residential landscapers, masonry specialists, patio contractors, and rental yards who need to crush concrete rubble on-site without heavy transport gear.

Equipped with a dependable Honda GX390 OHV gasoline engine delivering 11.7 HP at 3,600 RPM, the K1 drives high-manganese steel jaw dies that crush reinforced concrete, cinder blocks, brick rubble, and natural river rock at a rate of 2 to 4 tons per hour.

The feed inlet measures 5.91 × 9.84 inches (150 × 250 mm), accommodating standard chunks from demolished patios, walkways, and masonry walls. Operators can calibrate the output setting from fine 0.20-inch (5 mm) bedding material up to 1.0-inch (25 mm) road-base aggregate.

A built-in 15.75-inch (400 mm) wide rubber conveyor belt automatically discharges crushed material away from the chassis, stacking finished aggregate up to 39.37 inches high. The towable trailer frame connects directly to standard pickup truck hitches for rapid mobilization between jobsites.

Competitive Advantage

Why Contractors Choose the StoneKrusher K1

Three critical engineering decisions that translate into lower operating costs and higher jobsite throughput.

Highway Towable Mobility

Engineering Feature
Integrated Trailer Chassis with Ball Coupler
Technical Reason
Integrated road axle, pneumatic tires, and trailer hitch eliminate the need for a dedicated equipment transport trailer.
Practical Contractor Benefit
Hitch directly to a standard pickup truck or SUV and tow to the jobsite like a small utility trailer.

11.7 HP Honda GX390 Power

Engineering Feature
Industrial Overhead Valve Engine
Technical Reason
Proven 4-stroke single-cylinder engine with cast iron sleeve delivers reliable crushing torque with low fuel consumption.
Practical Contractor Benefit
Starts on demand, uses standard 87 octane gasoline, and requires minimal maintenance downtime.

Adjustable 0.20 to 1.0 Inch Output

Engineering Feature
Variable Discharge Jaw Shims
Technical Reason
Manual hydraulic adjustment shim changes the gap between fixed and moving manganese jaw dies.
Practical Contractor Benefit
Produce fine pipe bedding sand or coarse 1-inch driveway base gravel from the same rubble pile.

Eliminate Tipping & Disposal Fees

Engineering Feature
2 to 4 Tons per Hour On-Site Processing
Technical Reason
Processes up to 8,800 lbs of concrete rubble every hour directly on the property.
Practical Contractor Benefit
Save hundreds of dollars per day in dump fees and virgin aggregate delivery charges.
Technical Data Sheets

TYPHON StoneKrusher K1 – KONSTRUCTZ Series Full Specifications

Dual-unit specifications (US Standard primary, Metric secondary) verified for commercial procurement and jobsite validation.

Engine & Performance

Engine ModelHonda GX390 OHV (Gasoline)
Engine Power11.7 HP (8.7 kW) @ 3,600 RPM
Operating Weight2,205 lbs (1,000 kg)
Production Capacity2 to 4 Tons / hour
Fuel TypeStandard 86–87 AKI Gasoline
Fuel Tank Capacity1.59 gal (6.0 L)

Jaw & Crusher Geometry

Crusher TypeTowable Compact Jaw Crusher
Feed Inlet Size5.91 × 9.84 in (150 × 250 mm)
Output Aggregate Range0.20–1.0 in (5–25 mm)
Conveyor Belt Width15.75 in (400 mm)
Conveyor Stacking Height27.56–39.37 in (700–1,000 mm)
Control SystemManual Hydraulic Control Valve
Logistics & Tooling

Jobsite Footprint & Compatibility

Clear dimension clearances, trailer towing parameters, and auxiliary attachment options.

Dimensions & Access Clearance

Operating weight is 2,205 lbs (1,000 kg); conveyor discharge height is up to 39.37 inches.

Trailer Towing & Hauling

Features integrated pneumatic transport tires and standard ball hitch for towing behind standard trucks.

Practical Workloads

Where the StoneKrusher K1 Excels

Common jobsite tasks and industry applications where this machine delivers maximum efficiency.

01

Patio & Walkway Concrete Recycling

Crush broken residential patio concrete on-site and use it immediately as base gravel for new pavers.

02

Brick & Chimney Masonry Crushing

Process demolished fireplace bricks, chimney rubble, and mortar into clean decorative crushed brick gravel.

03

Driveway Sub-Base Gravel Production

Turn native field rock into compactable 3/4-inch aggregate to repair gravel driveways and access lanes.

04

Pipe Bedding & Backfill Creation

Crush excavated rock down to 0.20–0.50 inch gravel for uniform pipe bedding along utility trenches.

Ideal Fleets

Built for These Trades & Operators

Residential Landscapers & Hardscapers

Crews tearing out old patios and concrete pads who want to produce their own base gravel on-site.

Masonry & Demolition Specialists

Contractors seeking an easily transportable crusher that can be towed with standard utility trucks.

Equipment Rental Companies

Rental operations wanting a reliable, towable, Honda-powered compact crusher for DIY and pro renters.

Model FAQs

TYPHON StoneKrusher K1 – KONSTRUCTZ Series Technical Inquiries

Detailed answers on hydraulics, fluid maintenance, transport, and operation.

Can I tow the StoneKrusher K1 on the road?
Yes. The K1 is built on an integrated trailer chassis with highway-rated pneumatic tires and a standard 2-inch ball coupler for towing behind pickup trucks.
What size rocks and concrete can I feed into the K1?
The feed inlet measures 5.91 × 9.84 inches (150 × 250 mm). Material should be broken down to fit within these opening dimensions.
How much gravel can the K1 crush per hour?
The K1 produces between 2 and 4 tons (4,400 to 8,800 lbs) of crushed aggregate per hour depending on material hardness and output setting.
Can the K1 crush concrete with rebar?
Yes, provided rebar is trimmed flush so chunks fit into the inlet. The rebar passes through the jaws and discharges onto the conveyor belt intact.
What output sizes can the K1 produce?
The output size is adjustable from fine 0.20-inch (5 mm) screenings up to 1.0-inch (25 mm) road-base stone.
