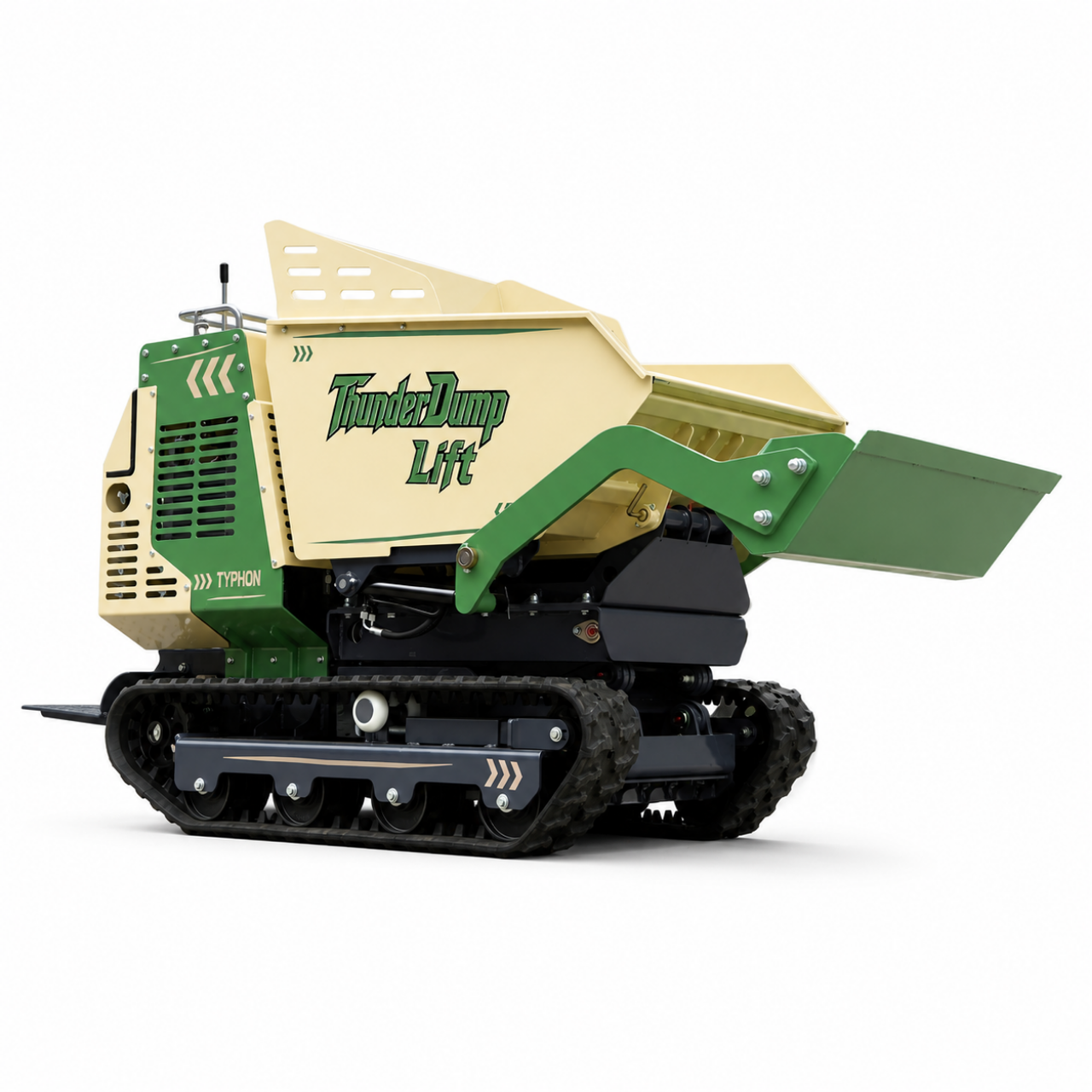

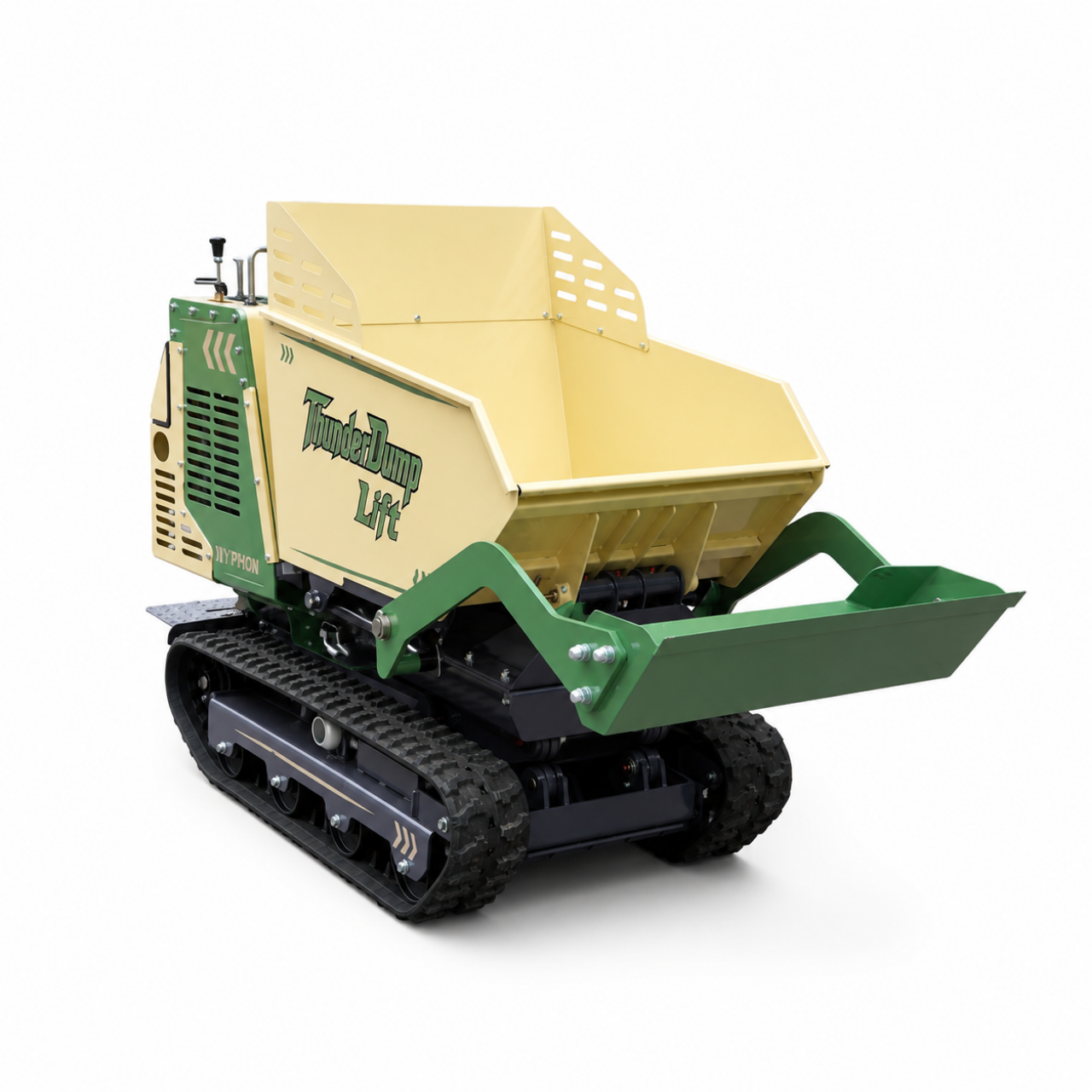

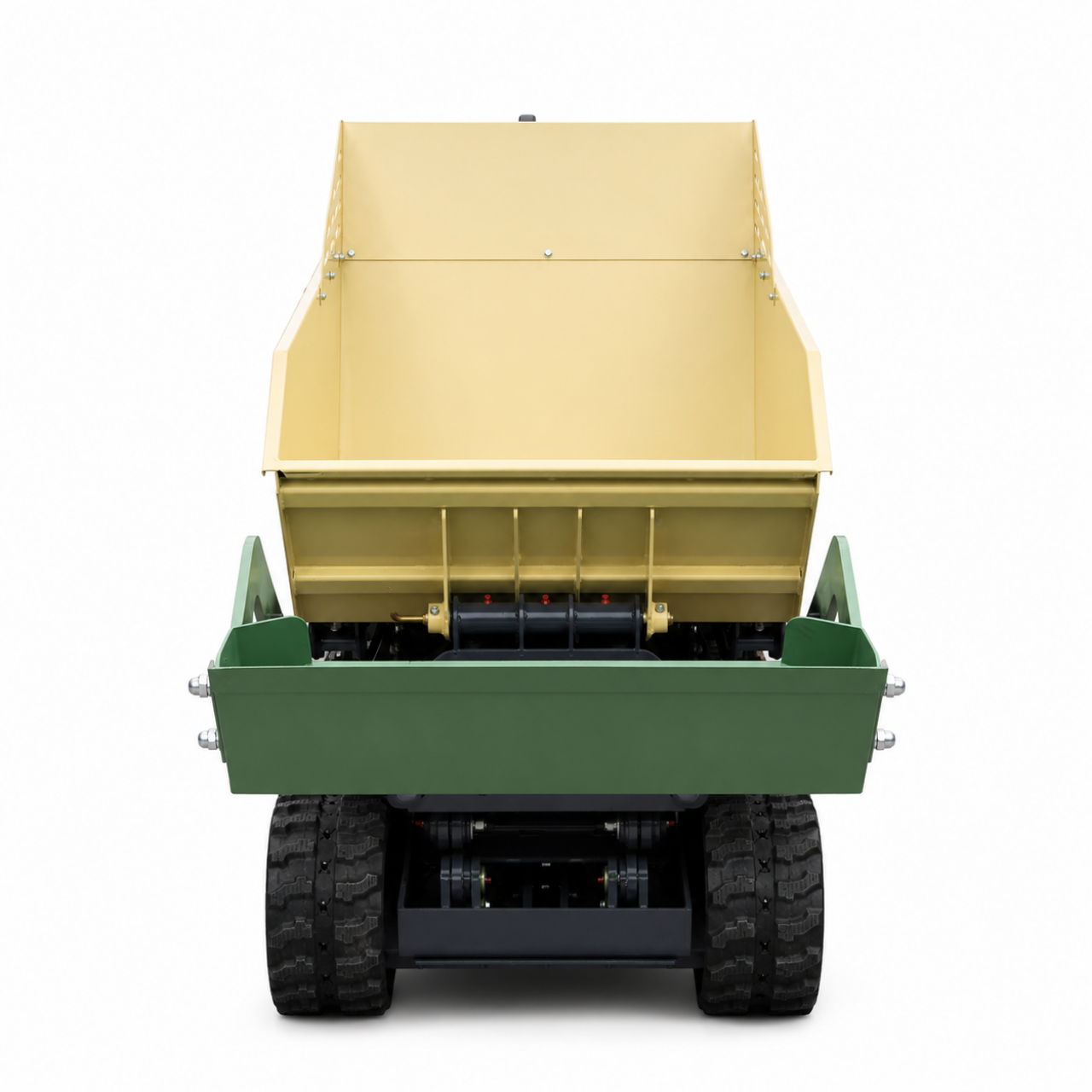

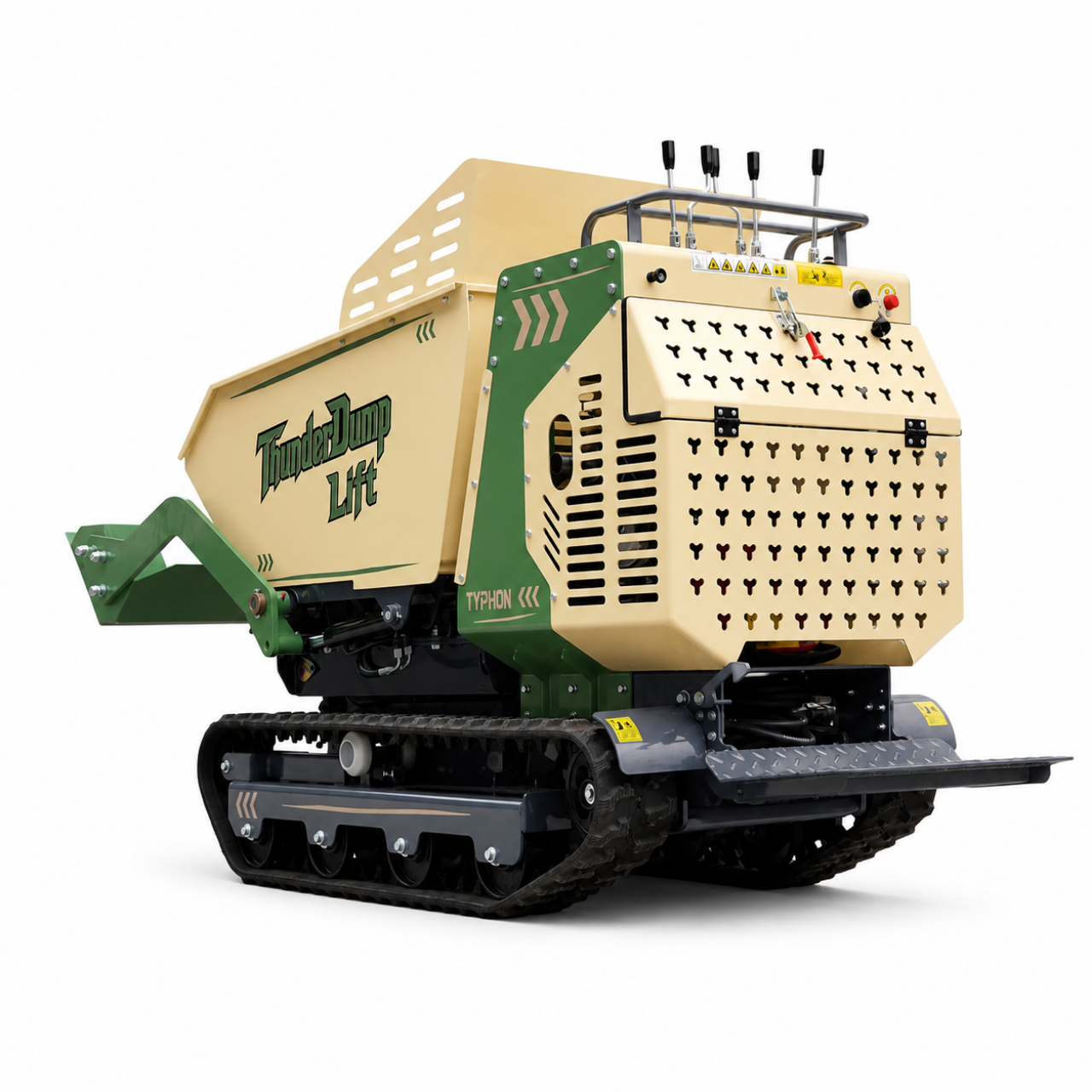

TYPHON THUNDERDUMP LIFT – KONSTRUCTZ Series

Tracked High-Lift Scissor Dumper with 59-Inch Truck-Loading Discharge

Max Transport Load2,205 lbs1,000 kg Payload
Operating Weight1,940 lbs880 kg
Engine ModelHonda GX39011 HP OHV Gas
Max Dump Height59.1 in1,500 mm High-Lift
Chassis Width33.5 in850 mm Gate Access
Dump Angle100°Clean Material Release
Commercial ProcurementRequest Commercial Quote
Includes Standard Bucket & Hydraulic Thumb
Request Commercial QuoteFull Spec Sheet
Need quick jobsite sizing, freight quote, or wholesale terms?Call (213) 214-2203
1-Year Commercial Warranty
Nationwide Flatbed Delivery
EPA Tier 4 Final Engine
In-Stock Parts & Tech Support
Engineering Architecture

Commercial Overview: ThunderDump Lift

The TYPHON THUNDERDUMP LIFT solves one of the most persistent bottlenecks in urban excavation and landscaping: moving heavy spoils out of narrow backyards and loading them directly into high-sided dump trucks without double-handling.

Measuring an ultra-narrow 33.5 inches (850 mm) wide, this machine easily passes through standard 36-inch residential garden gates. Its continuous rubber crawler tracks provide high traction on steep 25-degree inclines while distributing the 2,205 lb (1,000 kg) payload over soft lawns without creating tire ruts.

Powered by the dependable Honda GX390 commercial gasoline engine (11 HP @ 3,600 RPM), the THUNDERDUMP LIFT features an integrated hydraulic pantograph scissor lift. When the operator reaches the disposal point, the hydraulic cylinders elevate the 10.24 ft³ (290 dm³) hopper to a discharge height of 59.1 inches (1,500 mm).

At maximum elevation, the bucket tilts to a steep 100-degree dump angle, cleanly releasing wet clay, gravel, concrete rubble, or topsoil directly over the sideboards of pickup beds, dump trailers, and commercial roll-off dumpsters.

Competitive Advantage

Why Contractors Choose the ThunderDump Lift

Three critical engineering decisions that translate into lower operating costs and higher jobsite throughput.

59.1-Inch Elevated Scissor Lift

Engineering Feature
Hydraulic High-Lift Discharge Mechanism
Technical Reason
Dual-stage hydraulic cylinders lift the entire hopper vertically before initiating the tipping stroke.
Practical Contractor Benefit
Dump directly over commercial dump truck and trailer sideboards — eliminating hand-shoveling into containers.

33.5-Inch Ultra-Narrow Footprint

Engineering Feature
Slim In-Line Chassis Engineering
Technical Reason
Engine, hydraulic tank, and operator controls are organized inline to keep the track width to 33.5 in (850 mm).
Practical Contractor Benefit
Pass through standard 36-inch residential garden gates to access backyards without taking down fences.

100-Degree Clean Dump Angle

Engineering Feature
Over-Center Hydraulic Tipping Angle
Technical Reason
Tipping cylinders push the hopper past the vertical 90-degree plane to 100 degrees.
Practical Contractor Benefit
Sticky wet clay, mud, and demolition debris fall out completely without sticking to the hopper floor.

Continuous Rubber Track Traction

Engineering Feature
7.1-Inch Wide Tracks with 36-Inch Contact Length
Technical Reason
Extended ground contact area reduces ground pressure to protect delicate sod on residential lawns.
Practical Contractor Benefit
Haul 2,205 lbs of material across wet ground and up 25-degree slopes without losing traction or rutting grass.
Technical Data Sheets

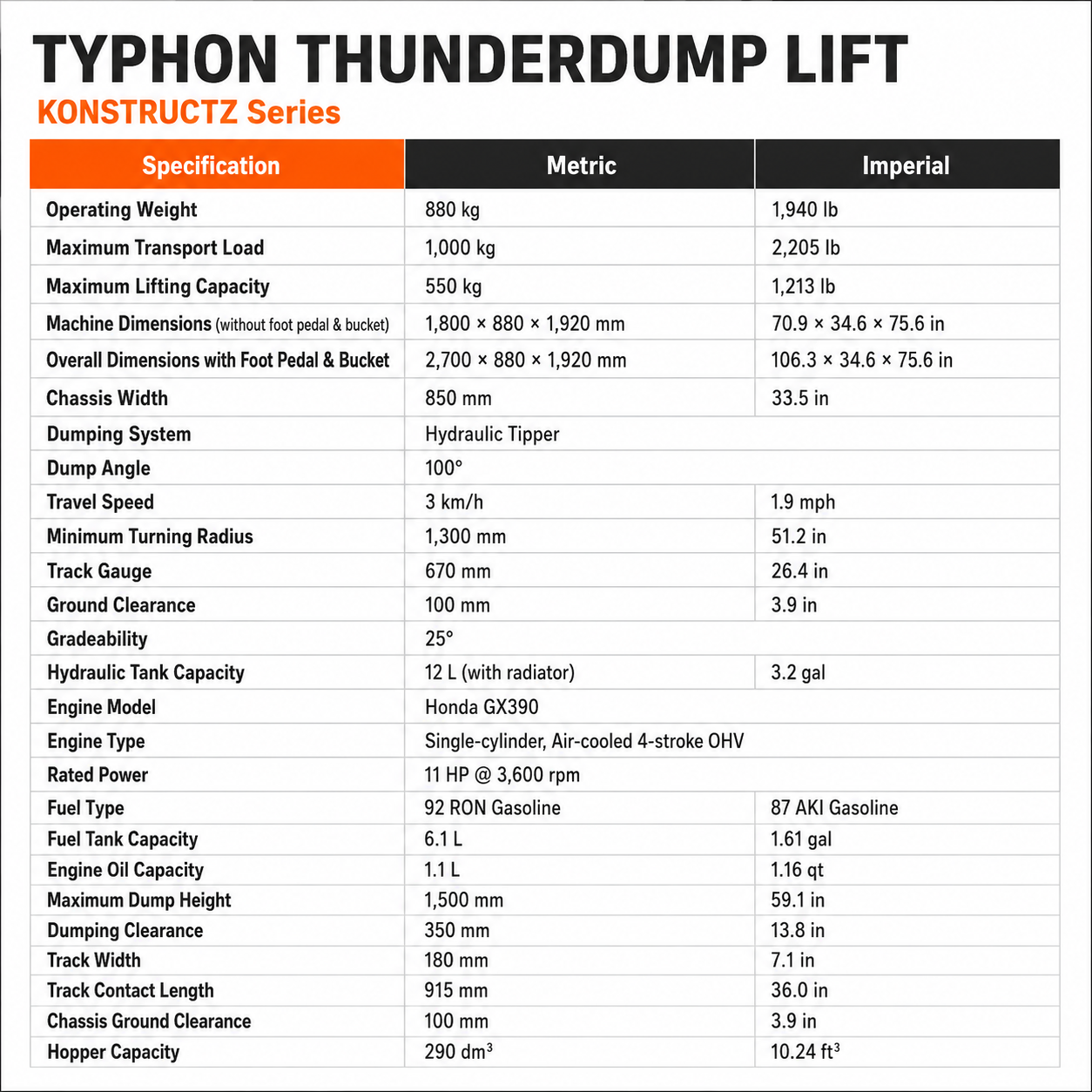

TYPHON THUNDERDUMP LIFT – KONSTRUCTZ Series Full Specifications

Dual-unit specifications (US Standard primary, Metric secondary) verified for commercial procurement and jobsite validation.

Engine & Performance

Engine ModelHonda GX390 OHV (Gasoline)
Engine Power11 HP @ 3,600 RPM
Operating Weight1,940 lbs (880 kg)
Max Transport Load2,205 lbs (1,000 kg)
Max Lifting Capacity1,213 lbs (550 kg)
Travel Speed1.9 mph (3 km/h)
Max Gradeability25°

Dumping & Hopper Dimensions

Max Dump Height59.1 in (1,500 mm)
Dumping Clearance13.8 in (350 mm)
Dump Angle100°
Dumping SystemHydraulic Scissor Tipper
Hopper Capacity10.24 ft³ (290 dm³)
Chassis Width33.5 in (850 mm)
Track Width7.1 in (180 mm)
Track Contact Length36.0 in (915 mm)
Logistics & Tooling

Jobsite Footprint & Compatibility

Clear dimension clearances, trailer towing parameters, and auxiliary attachment options.

Dimensions & Access Clearance

Chassis width is 33.5 in (850 mm); operating weight is 1,940 lbs; max dump height reaches 59.1 in (1,500 mm).

Trailer Towing & Hauling

At 1,940 lbs, it fits easily on standard single-axle landscape trailers alongside other small tools.

Practical Workloads

Where the ThunderDump Lift Excels

Common jobsite tasks and industry applications where this machine delivers maximum efficiency.

01

Direct Dump Truck & Skip Loading

Elevates to 59.1 inches to discharge directly into high-sided dump trailers, commercial dump trucks, and roll-offs.

02

Backyard Pool & Foundation Spoils Hauling

Navigate 36-inch side gates carrying 2,205 lbs of heavy excavated soil per trip out to street disposal trucks.

03

Wet Ready-Mix Concrete Placement

Transport wet concrete from street delivery transit mixers into tight backyard patio and footing forms.

04

Steep Incline & Hillside Material Transport

Climb 25-degree slopes with stability, hauling gravel and stone up terraced retaining wall projects.

Ideal Fleets

Built for These Trades & Operators

Excavation & Pool Contractors

Crews needing to extract tons of backyard soil through narrow gates into high dump trucks.

Landscapers & Hardscape Builders

Builders moving bulk aggregates, mulch, and pavers across lawns without lawn damage.

Demolition & Masonry Specialists

Teams hauling concrete rubble out of residential interiors and courtyards directly into dumpsters.

Model FAQs

TYPHON THUNDERDUMP LIFT – KONSTRUCTZ Series Technical Inquiries

Detailed answers on hydraulics, fluid maintenance, transport, and operation.

How high can the THUNDERDUMP LIFT elevate material?
The hydraulic scissor mechanism lifts the hopper to a maximum discharge height of 59.1 inches (1,500 mm) with a 100-degree dumping angle.
Will the THUNDERDUMP LIFT fit through a standard 36-inch gate?
Yes. With an overall chassis width of only 33.5 inches (850 mm), it easily clears standard residential walk gates.
How much weight can it transport?
It has a maximum transport load capacity of 2,205 lbs (1,000 kg) and a maximum hydraulic scissor lifting capacity of 1,213 lbs (550 kg).
Can it handle wet sticky clay without clogging?
Yes. The hopper tilts past vertical to an over-center 100-degree angle, ensuring sticky clay and wet concrete release cleanly.
What engine powers the THUNDERDUMP LIFT?
It is powered by a commercial Honda GX390 OHV gasoline engine delivering 11 HP at 3,600 RPM.
