TYPHON SKOOP II Compact Wheel Loader view 1
1/3
KONSTRUCTZ FleetWheel LoadersSKU: SKOOP-IIIn Stock • Ships in 1-2 Days

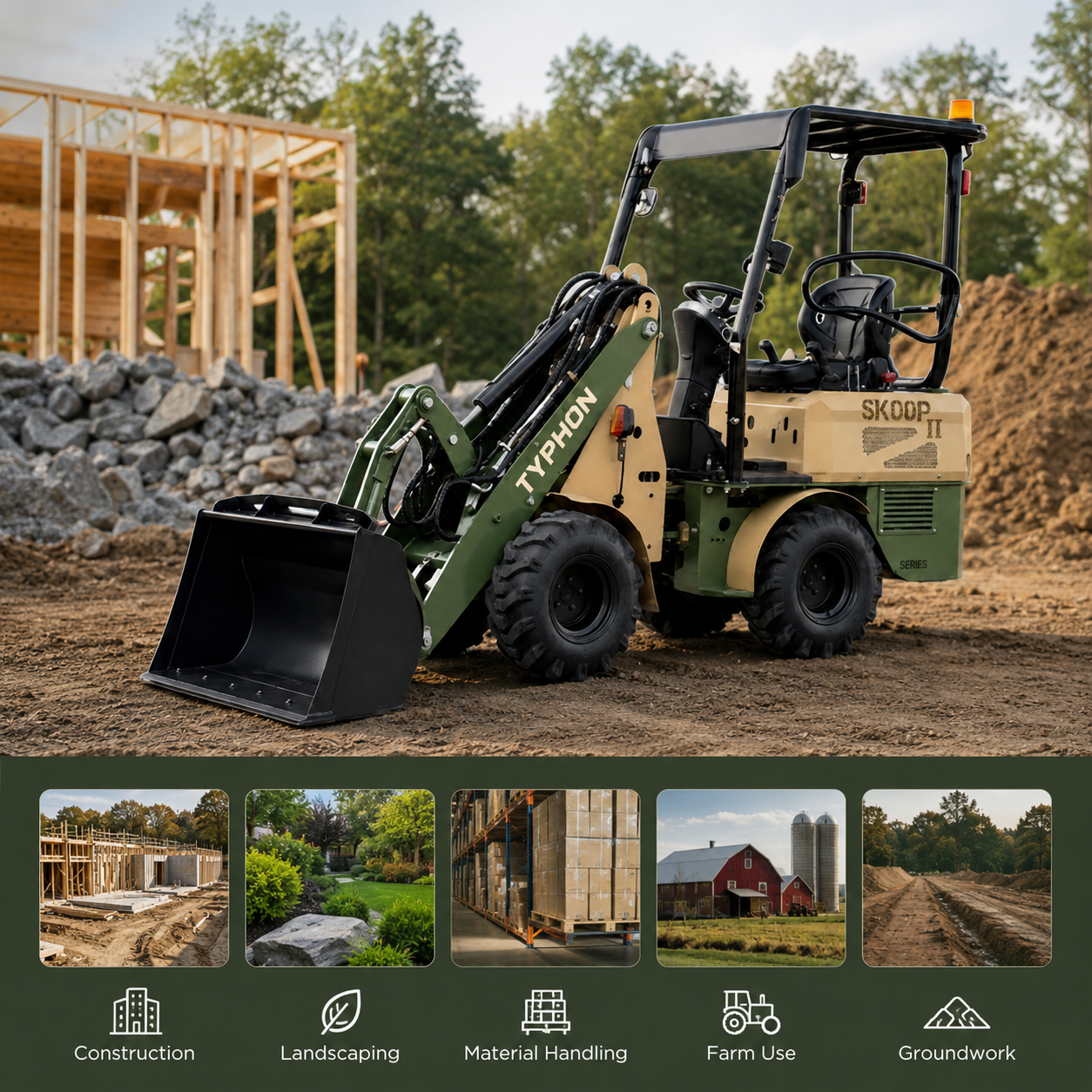

TYPHON SKOOP II Compact Wheel Loader

Fast-Cycling Articulated Wheel Loader with Kubota V1505 Power

Operating Weight4,850 lbs2,200 kg
Engine ModelKubota V150528 HP @ 2,400 RPM
Lift Capacity1,800 lbs816 kg Rated Load
Hinge Pin Height8.8 ft2,680 mm
Turning Radius7.5 ft2,280 mm
SteeringArticulated +/-40°Center-Pivot
Commercial ProcurementRequest Commercial Quote
Includes Standard Bucket & Hydraulic Thumb
Request Commercial QuoteFull Spec Sheet
Need quick jobsite sizing, freight quote, or wholesale terms?Call (213) 214-2203
1-Year Commercial Warranty
Nationwide Flatbed Delivery
EPA Tier 4 Final Engine
In-Stock Parts & Tech Support
Engineering Architecture

Commercial Overview: SKOOP II

The TYPHON SKOOP II is a commercial articulated compact wheel loader engineered for high-cycle material handling, agricultural operations, bulk aggregate yards, and site logistics. It delivers high forward speeds and substantial lifting capacity without tearing up ground surfaces.

Powered by the renowned Kubota V1505 four-cylinder diesel engine producing 28 HP at 2,400 RPM, the SKOOP II pairs smooth engine output with a 4-wheel drive hydrostatic transmission. This provides effortless acceleration, intuitive foot pedal drive, and high pushing power into compacted stockpiles.

The center-pivot articulated chassis allows a 40-degree steering angle in both directions, yielding a tight 7.5 ft (2,280 mm) turning radius. Because the rear wheels track precisely behind the front wheels, the SKOOP II moves across manicured turf, nursery lawns, and asphalt without the scrubbing and tire wear typical of skid steers.

With an 8.8 ft (2,680 mm) hinge pin height and an 1,800 lb (816 kg) maximum lifting capacity, the SKOOP II easily loads high-sided tandem-axle dump trucks, topsoil hoppers, and commercial feed mixers with rapid cycle times.

Competitive Advantage

Why Contractors Choose the SKOOP II

Three critical engineering decisions that translate into lower operating costs and higher jobsite throughput.

Japanese Kubota V1505 Engine

Engineering Feature
28 HP 4-Cylinder Industrial Diesel
Technical Reason
Four-cylinder design provides smooth, low-vibration torque output across the entire working RPM band.
Practical Contractor Benefit
High mechanical reliability, low fuel consumption, and full domestic U.S. dealer parts support.

Articulated Center-Pivot Steering

Engineering Feature
+/- 40° Articulation Angle (7.5 ft Turning Radius)
Technical Reason
Front and rear chassis sections pivot around a heavy-duty oscillation joint, maintaining wheel ground contact.
Practical Contractor Benefit
Turns tightly in narrow barn aisles and nursery roads with zero turf scrub and reduced tire wear.

1,800 lb Lift Capacity & 8.8 ft Pin Height

Engineering Feature
Heavy-Duty Parallel Linkage Loader Arm
Technical Reason
Optimized geometry maintains bucket level during lifting, preventing material spillage back toward the cab.
Practical Contractor Benefit
Clear dump truck sideboards easily and safely lift palletized materials with fork attachments.

Hydrostatic 4-Wheel Drive

Engineering Feature
Smooth Infinitely Variable Transmission
Technical Reason
Axial piston pump and heavy-duty hub motors deliver seamless forward/reverse transitions with high tractive effort.
Practical Contractor Benefit
Intuitive driving dynamics, rapid shuttle cycles, and high pushing force into gravel piles.
Technical Data Sheets

TYPHON SKOOP II Compact Wheel Loader Full Specifications

Dual-unit specifications (US Standard primary, Metric secondary) verified for commercial procurement and jobsite validation.

Engine & Drivetrain

Engine ModelKubota V1505 Diesel (Japan)
Engine Type4-Cylinder, Liquid-Cooled, 4-Cycle
Rated Power28 HP @ 2,400 RPM
Drive System4WD Hydrostatic Transmission

Performance & Capacities

Operating Weight4,850 lbs (2,200 kg)
Rated Load Capacity1,800 lbs (816 kg)
Max Lifting Capacity1,800 lbs (816 kg)
Max Lift Height (Hinge Pin)8.8 ft (2,680 mm)
Turning Radius7.5 ft (2,280 mm)
Steering AngleArticulated +/- 40°
Logistics & Tooling

Jobsite Footprint & Compatibility

Clear dimension clearances, trailer towing parameters, and auxiliary attachment options.

Dimensions & Access Clearance

Operating weight is 4,850 lbs; turning radius is 7.5 ft (2,280 mm); max hinge pin lift height is 8.8 ft (2,680 mm).

Trailer Towing & Hauling

Weighing 4,850 lbs, the SKOOP II tows easily on a 7,000–10,000 lb GVWR trailer behind standard pickup trucks.

Compatible Hydraulic Attachments

Equipped with front hydraulic quick-attach plate supporting bulk buckets, light material buckets, and pallet forks.

Practical Workloads

Where the SKOOP II Excels

Common jobsite tasks and industry applications where this machine delivers maximum efficiency.

01

Aggregate & Sand Yard Logistics

Load dump trucks, blend soil mixes, and maintain gravel piles with high cycle speeds and low tire wear.

02

Agricultural Farm & Feed Management

Move round bales, clean cattle barns, load feed wagons, and distribute manure across farm acreage.

03

Nursery & Greenhouse Operations

Transport potted trees, pallets of fertilizer, and mulch through narrow nursery aisles without turf damage.

04

Commercial Snow Clearing & Pushing

Equip with snow pushers or angle blades to clear parking lots with high visibility from the elevated seat.

Ideal Fleets

Built for These Trades & Operators

Agricultural & Equestrian Facilities

Barn managers moving hay, manure, feed, and bedding through tight aisles without lawn damage.

Landscape Supply & Material Yards

Businesses loading topsoil, crushed gravel, and mulch into customer pickup trucks all day.

Nurseries & Commercial Greenhouses

Growers moving palletized plant stock and bulk potting soil across paved and gravel surfaces.

Model FAQs

TYPHON SKOOP II Compact Wheel Loader Technical Inquiries

Detailed answers on hydraulics, fluid maintenance, transport, and operation.

How much weight can the SKOOP II lift?
The TYPHON SKOOP II has a rated load and maximum lifting capacity of 1,800 lbs (816 kg), with an 8.8 ft hinge pin height.
Why choose an articulated loader instead of a skid steer?
Articulated loaders pivot in the center rather than skidding tires. This eliminates lawn tearing, significantly reduces tire wear, provides higher forward speeds, and delivers better visibility over the bucket.
What engine powers the SKOOP II?
The SKOOP II is equipped with a genuine Japanese Kubota V1505 4-cylinder diesel engine producing 28 HP at 2,400 RPM.
Can the SKOOP II load full-size dump trucks?
Yes. With an 8.8 ft (2,680 mm) hinge pin height, it easily clears standard commercial dump truck and dump trailer sideboards.
What attachments work with the SKOOP II?
The SKOOP II features a front quick-attach plate that accommodates bulk dirt buckets, pallet forks, log/brush grapples, and snow pusher blades.
Fleet Synergy

Related & Complementary Equipment

Consider pairing the SKOOP II with these complementary units for higher jobsite autonomy.

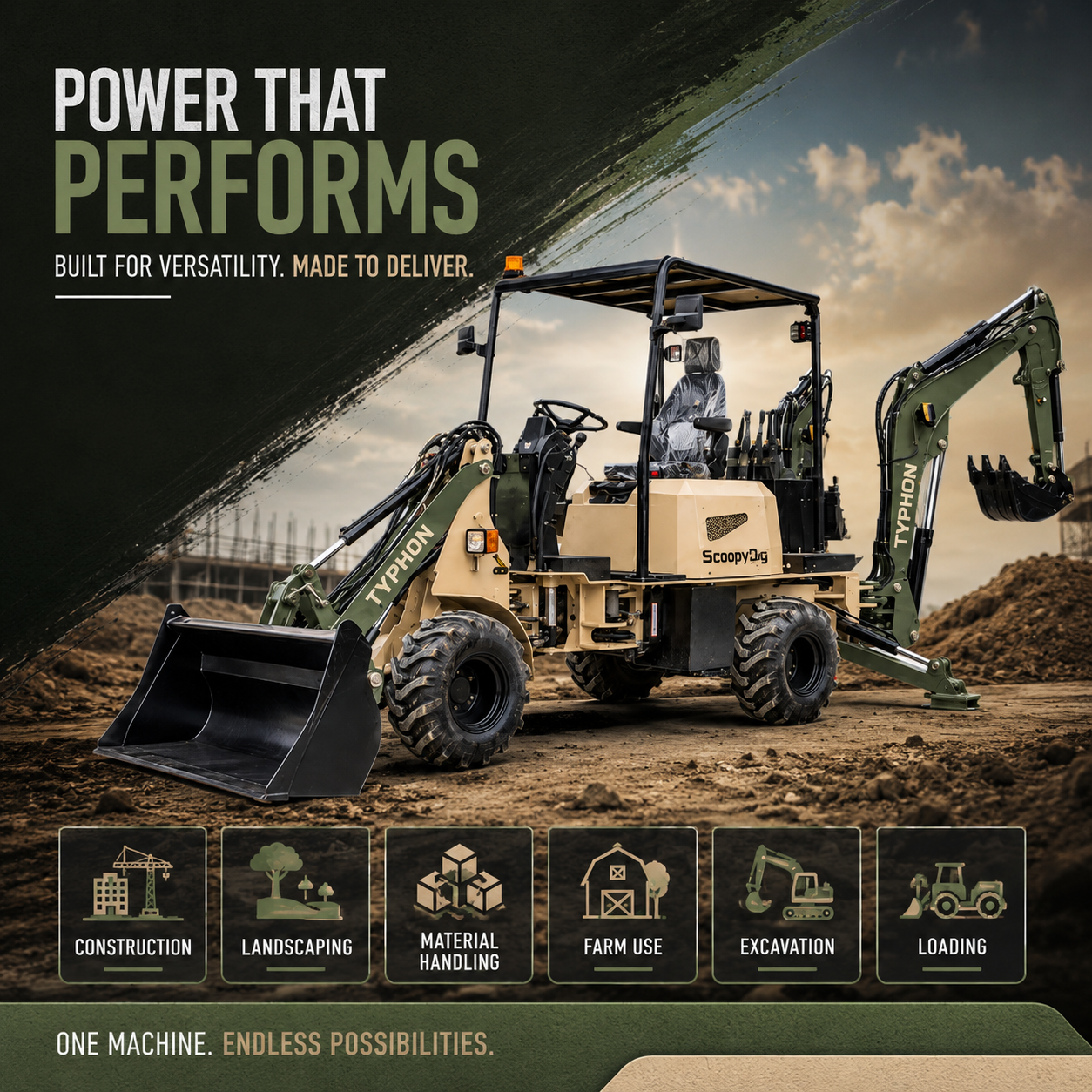

TYPHON ScoopyDig

TYPHON ScoopyDig

Adds an integrated 6.5 ft rear backhoe digging arm for 2-in-1 loading and excavating.

Compare Alternative →
StoneKrusher K2

StoneKrusher K2

Use SKOOP II to feed rubble into the crusher and stockpile finished aggregate.

View Complementary Machine →
THUNDERDUMP 180

THUNDERDUMP 180

Load the high-capacity THUNDERDUMP 180 with the SKOOP II bucket for rapid site hauling.

View Complementary Machine →
