TYPHON STOMP V950 Compact Loader view 1
1/5
KONSTRUCTZ FleetSkid Steer LoadersSKU: STOMP-V950In Stock • Ships in 1-2 Days

TYPHON STOMP V950 Compact Loader

High-Traction 1.5-Ton Track Loader Built for Heavy Material Handling

Operating Weight3,307 lbs1,500 kg / 1.5 Ton
Engine ModelKubota D110525 HP Diesel
Operating Load1,168 lbs530 kg Capacity
Max Pin Height82.28 in2,090 mm
Chassis Width41.34 in1,050 mm
Hydraulic Flow8.45 GPM32 L/min @ 2,466 PSI
Commercial ProcurementRequest Commercial Quote
Includes Standard Bucket & Hydraulic Thumb
Request Commercial QuoteFull Spec Sheet
Need quick jobsite sizing, freight quote, or wholesale terms?Call (213) 214-2203
1-Year Commercial Warranty
Nationwide Flatbed Delivery
EPA Tier 4 Final Engine
In-Stock Parts & Tech Support
Engineering Architecture

Commercial Overview: STOMP V950

The TYPHON STOMP V950 is a stand-on compact track loader engineered for heavy material transport, precision surface grading, and attachment operation on confined jobsites. It delivers the lifting muscle of full-size equipment on a slim 41.34-inch footprint.

Under the hood is the dependable Japanese Kubota D1105 three-cylinder diesel engine generating 25 HP. The engine powers a closed-loop hydrostatic drive system paired with dual auxiliary hydraulic circuits delivering 8.45 GPM (32 L/min) at 2,466 PSI (17 MPa), allowing operators to power hungry hydraulic tools like augers, grapples, and trenchers.

The machine's 1,168 lb rated operating load and 1,058 lb maximum lifting force make it a powerhouse for hauling heavy bulk materials. With a maximum hinge pin height of 82.28 inches (2,090 mm) and a maximum working height of 103.54 inches, it easily clears high-sided dump trailers and utility truck beds.

Built with high-tensile steel loader arms and an ergonomic operator station with cushioned knee pads and pilot joystick controls, the STOMP V950 keeps operator fatigue low during 10-hour workdays. Continuous rubber crawler tracks ensure aggressive traction without tearing up established turf.

Competitive Advantage

Why Contractors Choose the STOMP V950

Three critical engineering decisions that translate into lower operating costs and higher jobsite throughput.

Kubota D1105 Diesel Engine

Engineering Feature
25 HP Commercial Industrial Powertrain
Technical Reason
Three-cylinder liquid-cooled diesel architecture provides heavy low-end torque for digging and pushing into aggregate piles.
Practical Contractor Benefit
Dependable nationwide parts support, exceptional fuel efficiency, and long commercial service longevity.

41.3-Inch Gate Access

Engineering Feature
Narrow Chassis Profile
Technical Reason
Chassis design houses hydraulic components inboard to keep the overall width to just 41.34 inches.
Practical Contractor Benefit
Pass through standard 48-inch landscape gates to work inside residential yards without removing fence sections.

Heavy 1,168 lb Operating Capacity

Engineering Feature
High Lift Geometry & 82.3 in Pin Height
Technical Reason
Rigid high-tensile loader arms and optimized cylinder pivot points maximize lifting capacity across the full stroke.
Practical Contractor Benefit
Lift and dump full buckets of wet soil, gravel, and heavy sod pallets directly over dump trailer sides.

Universal Quick-Attach Interface

Engineering Feature
Standard Mini Skid Steer Mounting Plate
Technical Reason
Dual-pin quick-attach interface accepts standard mini track loader attachments with flat-face hydraulic couplers.
Practical Contractor Benefit
Seamlessly switch between buckets, grapples, augers, pallet forks, and tillers in under two minutes.
Technical Data Sheets

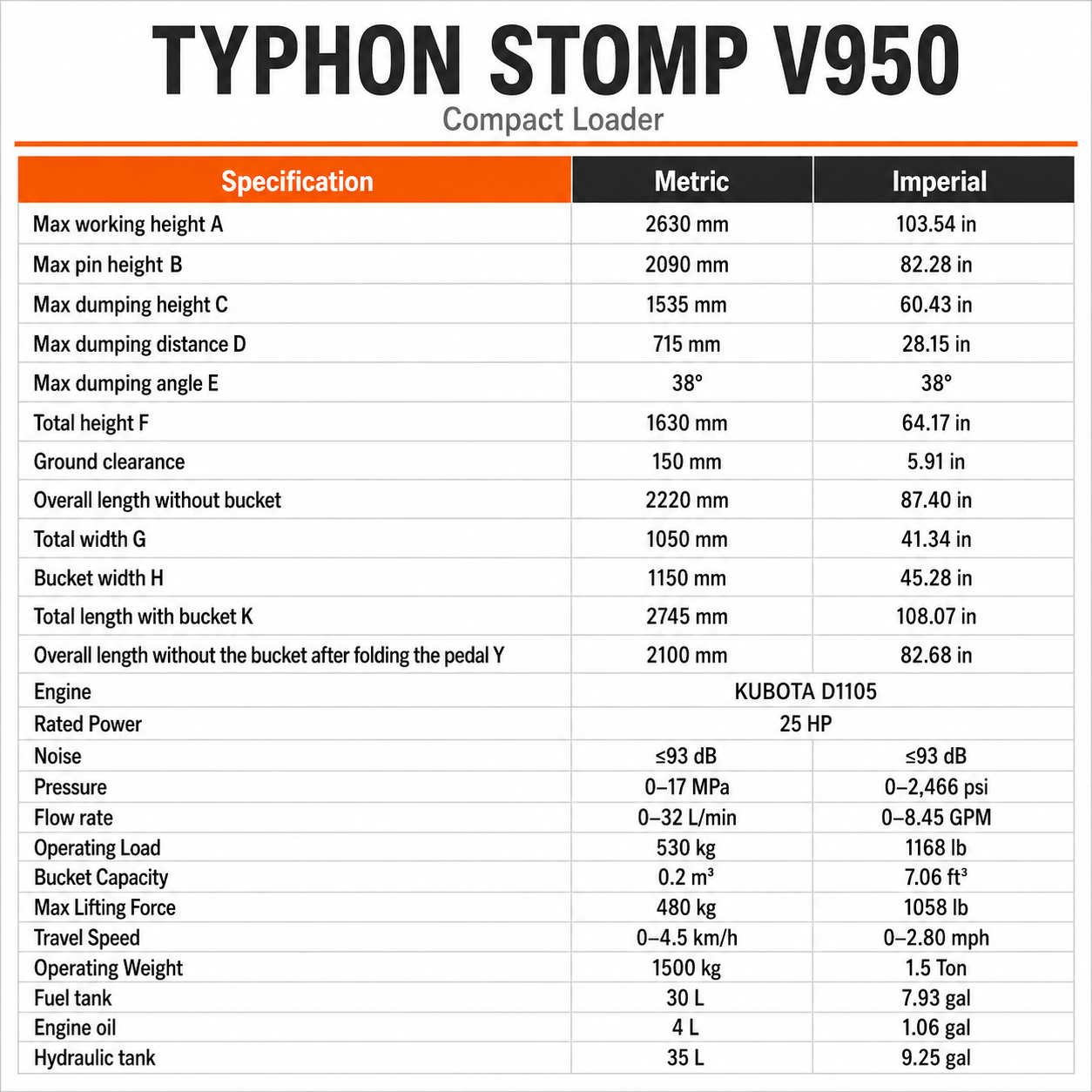

TYPHON STOMP V950 Compact Loader Full Specifications

Dual-unit specifications (US Standard primary, Metric secondary) verified for commercial procurement and jobsite validation.

Engine & Performance

Engine ModelKubota D1105 Diesel (Japan)
Rated Power25 HP
Operating Weight3,307 lbs (1,500 kg)
Operating Load Capacity1,168 lbs (530 kg)
Max Lifting Force1,058 lbs (480 kg)
Travel Speed0–2.80 mph (0–4.5 km/h)

Loader Geometry & Dimensions

Total Width41.34 in (1,050 mm)
Total Height64.17 in (1,630 mm)
Max Working Height103.54 in (2,630 mm)
Max Pin Height82.28 in (2,090 mm)
Max Dumping Height60.43 in (1,535 mm)
Bucket Width45.28 in (1,150 mm)
Bucket Capacity7.06 ft³ (0.2 m³)
Ground Clearance5.91 in (150 mm)

Hydraulics & Capacities

Hydraulic Pressure0–2,466 PSI (0–17 MPa)
Hydraulic Flow Rate0–8.45 GPM (0–32 L/min)
Fuel Tank Capacity7.93 gal (30 L)
Hydraulic Tank Capacity9.25 gal (35 L)
Engine Oil Capacity1.06 gal (4 L)
Logistics & Tooling

Jobsite Footprint & Compatibility

Clear dimension clearances, trailer towing parameters, and auxiliary attachment options.

Dimensions & Access Clearance

Chassis width is 41.34 in (1,050 mm); total machine height is 64.17 in (1,630 mm); ground clearance is 5.91 in (150 mm).

Trailer Towing & Hauling

Operating weight of 3,307 lbs allows simple transport on a standard single or tandem-axle trailer behind any light pickup truck.

Compatible Hydraulic Attachments

Features a universal mini skid steer quick-attach plate and standard auxiliary hydraulic quick couplers.

Practical Workloads

Where the STOMP V950 Excels

Common jobsite tasks and industry applications where this machine delivers maximum efficiency.

01

Residential Landscaping & Sod Prep

Haul sod rolls, grade sub-soil, spread topsoil, and distribute mulch across residential properties.

02

Bulk Material Loading & Truck Cycles

Scoop crushed stone, sand, and river rock from stockpiles and load directly into dump trailers.

03

Hardscape & Paver Material Handling

Equip pallet forks to transport concrete paver pallets, wall blocks, and mortar bags around jobsites.

04

Post Hole & Pier Drilling

Run high-torque hydraulic augers to drill consistent holes for deck piers, fence posts, and tree plantings.

Ideal Fleets

Built for These Trades & Operators

Landscape Contractors

Firms needing high lift capacity through narrow backyard gates without tearing turf.

General Contractors & Builders

Crews cleaning up demolition debris, loading dumpsters, and carrying building materials.

Property Owners & Ranchers

Acreage owners requiring a multi-tool loader for road grading, fencing, and snow management.

Model FAQs

TYPHON STOMP V950 Compact Loader Technical Inquiries

Detailed answers on hydraulics, fluid maintenance, transport, and operation.

How much weight can the STOMP V950 lift?
The STOMP V950 has a rated operating load of 1,168 lbs (530 kg) and a maximum hydraulic lifting force of 1,058 lbs (480 kg), with an 82.28-inch pin height.
Will the STOMP V950 fit through a standard backyard gate?
Yes. With a chassis width of only 41.34 inches (1,050 mm), it easily clears standard 48-inch residential gates.
What engine is in the STOMP V950?
It is powered by a genuine Japanese Kubota D1105 3-cylinder diesel engine outputting 25 HP.
Does the STOMP V950 use standard mini skid steer attachments?
Yes. It features the industry-standard universal mini skid steer mounting plate and dual hydraulic flat-face couplers.
Is the STOMP V950 a stand-on or sit-down machine?
It is a stand-on machine with an ergonomic, spring-cushioned operator platform providing 360-degree visibility and fast mount/dismount.
Fleet Synergy

Related & Complementary Equipment

Consider pairing the STOMP V950 with these complementary units for higher jobsite autonomy.

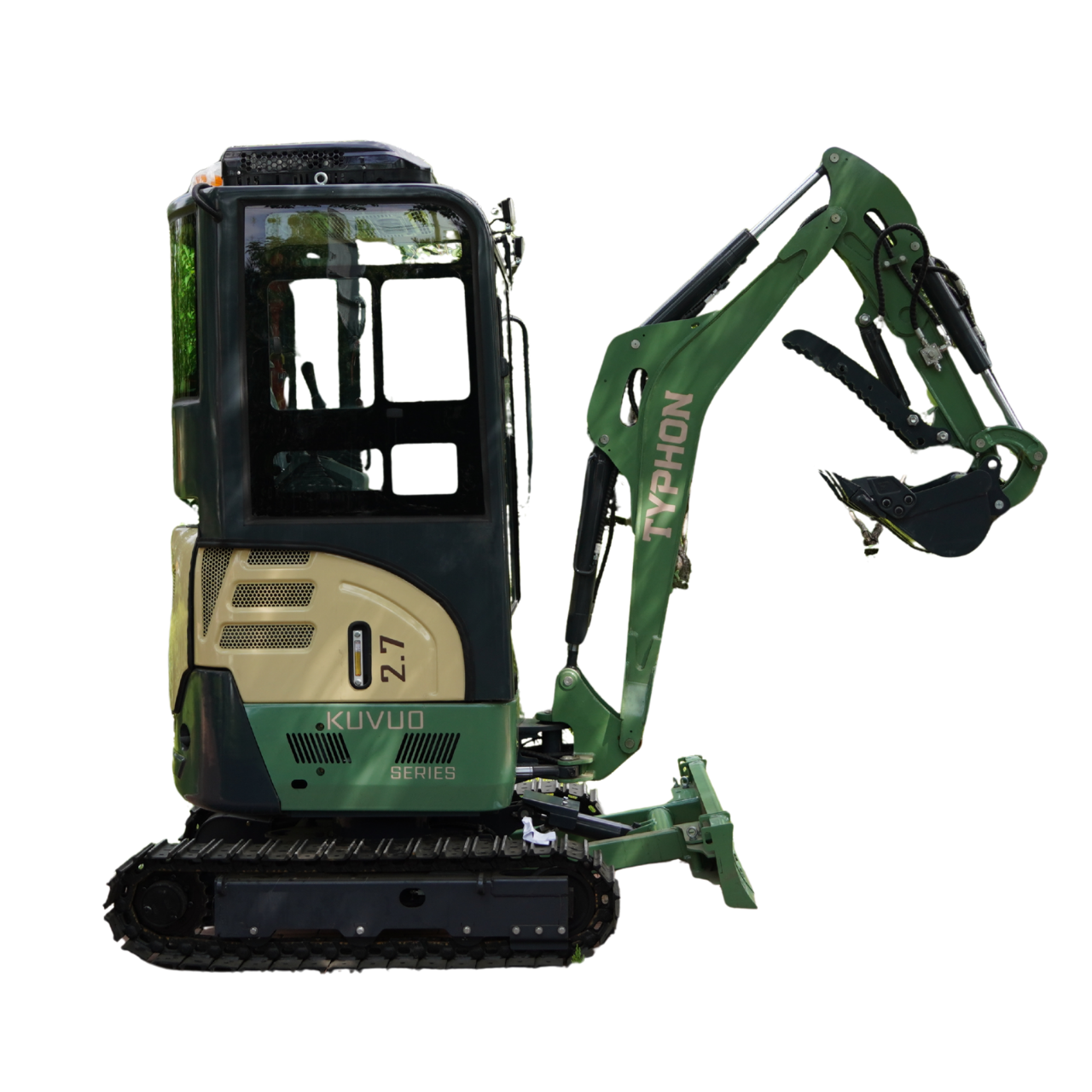

TYPHON KUVUO 2.7

TYPHON KUVUO 2.7

Dig trenches with the KUVUO 2.7, then backfill and grade with the STOMP V950.

View Complementary Machine →

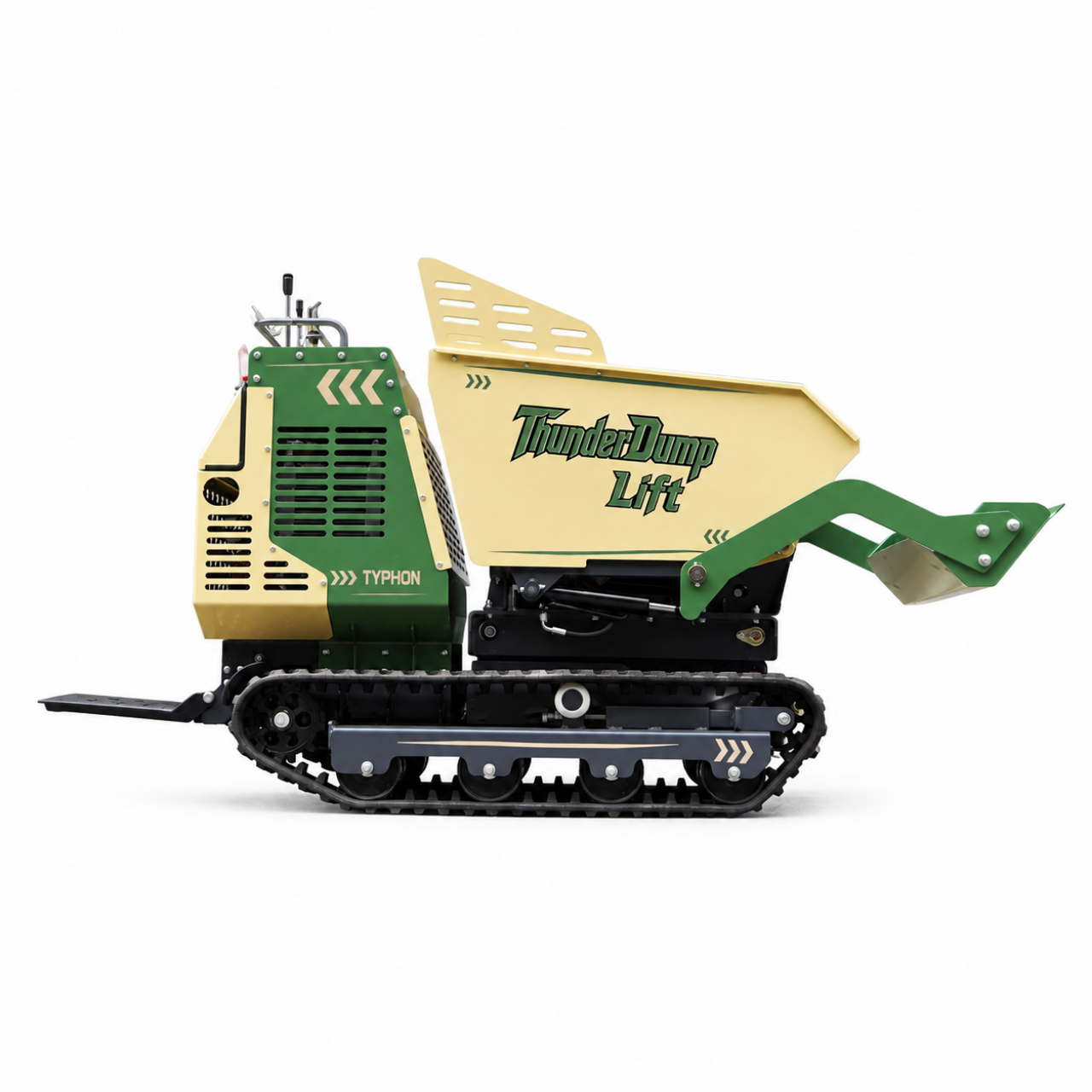

THUNDERDUMP LIFT

THUNDERDUMP LIFT

Transport bulk materials hauled by the STOMP V950 across long site distances.

View Complementary Machine →

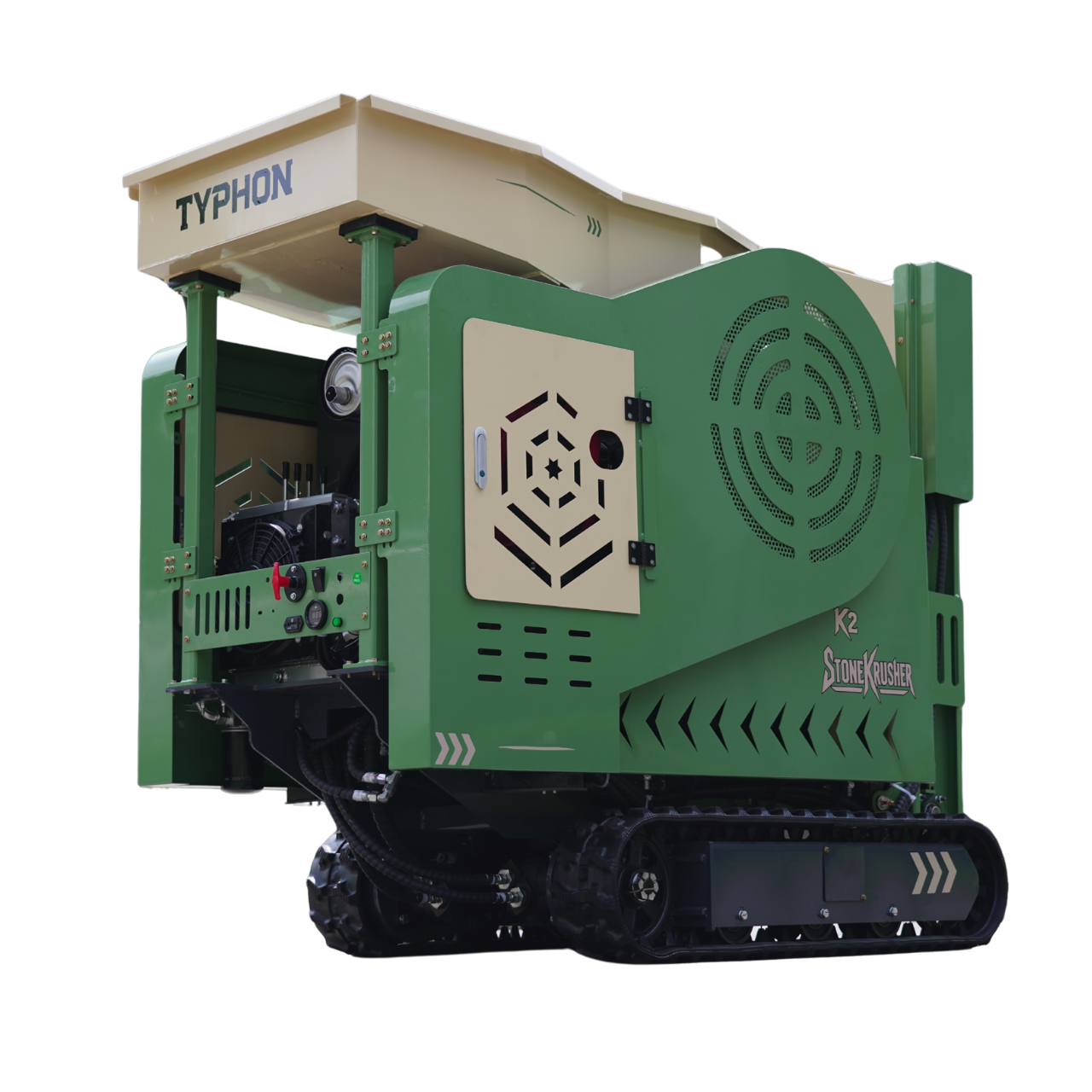

StoneKrusher K2
