TYPHON ScoopyDig Compact Backhoe Loader view 1
1/3
KONSTRUCTZ FleetWheel Loaders • Backhoe LoaderSKU: SCOOPYDIGIn Stock • Ships in 1-2 Days

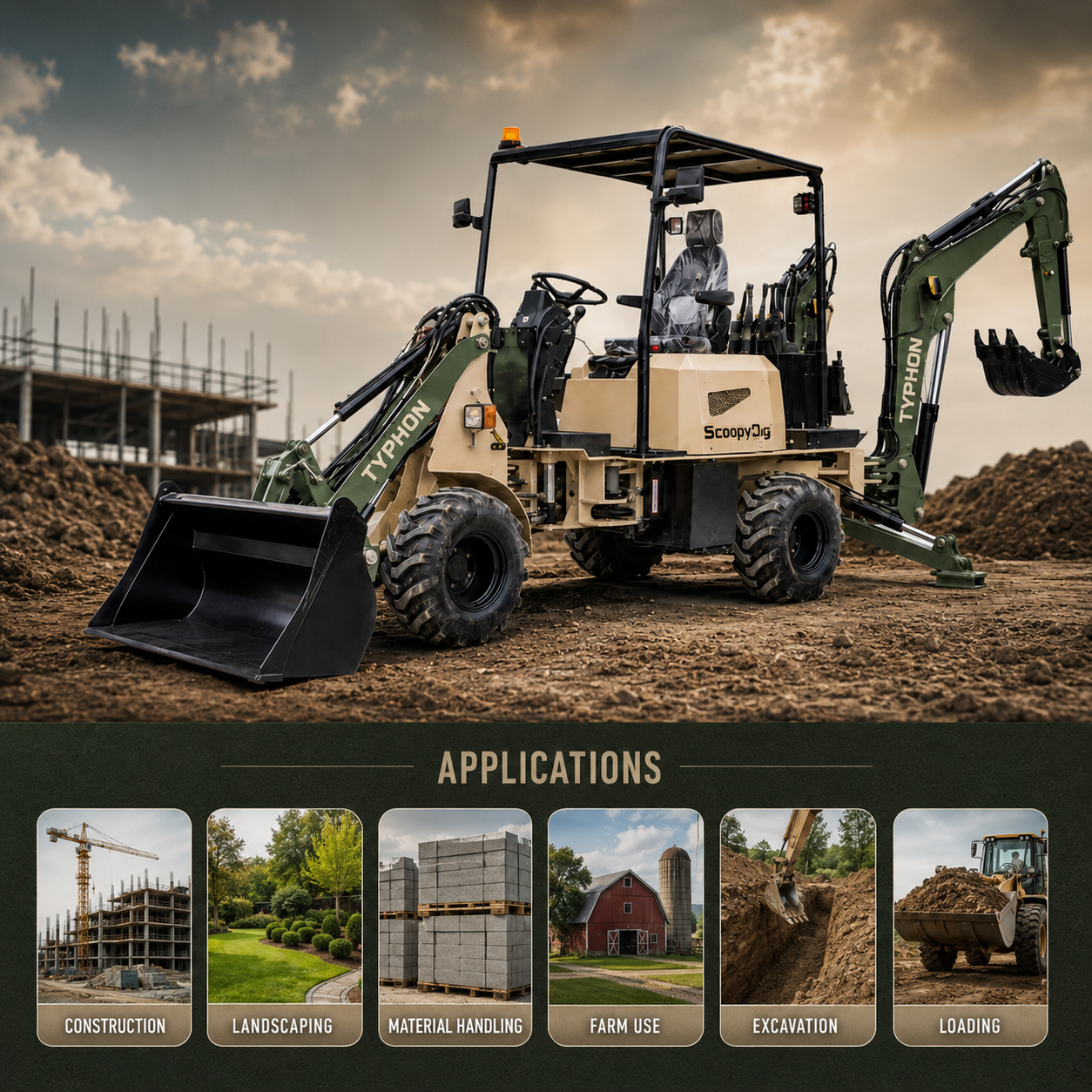

TYPHON ScoopyDig Compact Backhoe Loader

Dual-Duty Digging & Loading: Front Loader Plus 6.5 ft Rear Backhoe

Operating Weight7,050 lbs3,200 kg
Engine Power42 HPTurbo Diesel
Rear Digging Depth6.5 ft2,000 mm
Loader Bucket0.55 yd³0.42 m³ Capacity
Drive System4WD HydrostaticMax 12.4 mph
SteeringArticulated 4WDCenter-Pivot
Commercial ProcurementRequest Commercial Quote
Includes Standard Bucket & Hydraulic Thumb
Request Commercial QuoteFull Spec Sheet
Need quick jobsite sizing, freight quote, or wholesale terms?Call (213) 214-2203
1-Year Commercial Warranty
Nationwide Flatbed Delivery
EPA Tier 4 Final Engine
In-Stock Parts & Tech Support
Engineering Architecture

Commercial Overview: ScoopyDig

The TYPHON ScoopyDig lives within the KONSTRUCTZ Wheel Loader category as a specialized Backhoe Loader subtype. It is designed for contractors, utilities, and farmers who need both front material loading and rear precision excavation, but cannot justify transporting two separate machines to the jobsite.

Powered by a robust 42 HP turbo diesel engine, the ScoopyDig delivers significant hydraulic flow and tractive effort. A heavy-duty 4WD hydrostatic transmission propels the 7,050 lb (3,200 kg) machine up to 12.4 mph (20 km/h), allowing operators to quickly travel between work zones on large job sites and rural properties.

On the front, a heavy-duty 0.55 yd³ (0.42 m³) loader bucket scoops, moves, and loads bulk aggregate, topsoil, and demolition waste. On the rear, an integrated backhoe excavator arm with hydraulic stabilizers digs down to 6.5 ft (2,000 mm) with a 0.12 yd³ (0.09 m³) trenching bucket.

The articulated center-pivot chassis provides superior maneuverability over rigid backhoes, reducing ground disturbance and allowing the machine to work comfortably on uneven terrain, wet clay, and gravel roads.

Competitive Advantage

Why Contractors Choose the ScoopyDig

Three critical engineering decisions that translate into lower operating costs and higher jobsite throughput.

2-in-1 Dual Functionality

Engineering Feature
Front 0.55 yd³ Loader + Rear 6.5 ft Backhoe
Technical Reason
Integrated machine architecture incorporates both front loader arms and a structural rear swing post and stabilizers.
Practical Contractor Benefit
Trench utility lines with the rear backhoe and immediately backfill and grade with the front loader — with zero trailer swaps.

42 HP Turbo Diesel Muscle

Engineering Feature
High-Torque Turbocharged Powertrain
Technical Reason
Turbocharging delivers high air density for complete combustion under heavy hydraulic backhoe loads and 4WD tramming.
Practical Contractor Benefit
Power through compacted clay, hard subsoil, and full bucket loading cycles without engine stalling.

Hydrostatic 4WD with 12.4 mph Travel

Engineering Feature
Heavy-Duty 4-Wheel Drive Hydrostatic System
Technical Reason
Continuous hydraulic power delivery to both axles eliminates gear shifting while providing dynamic hydrostatic braking.
Practical Contractor Benefit
Travel rapidly between barns, fields, and jobsite zones at up to 12.4 mph without a trailer.

Articulated Chassis Steering

Engineering Feature
Center-Pivot Hydraulic Articulation
Technical Reason
Chassis articulates rather than turning front wheels only, allowing the rear tires to track the front tire path.
Practical Contractor Benefit
Reduced turning radius, minimal tire scrub on sensitive ground, and exceptional traction in muddy ruts.
Technical Data Sheets

TYPHON ScoopyDig Compact Backhoe Loader Full Specifications

Dual-unit specifications (US Standard primary, Metric secondary) verified for commercial procurement and jobsite validation.

Engine & Drivetrain

Engine Type42 HP Turbo Diesel
Drive System4WD Hydrostatic Transmission
Max Travel Speed12.4 mph (20 km/h)
Steering TypeArticulated Center-Pivot Chassis

Excavation & Loading Specs

Operating Weight7,050 lbs (3,200 kg)
Rear Digging Depth6.5 ft (2,000 mm)
Front Loader Bucket Capacity0.55 yd³ (0.42 m³)
Rear Backhoe Bucket Capacity0.12 yd³ (0.09 m³)
StabilizersDual Hydraulic Down-Riggers
Logistics & Tooling

Jobsite Footprint & Compatibility

Clear dimension clearances, trailer towing parameters, and auxiliary attachment options.

Dimensions & Access Clearance

Operating weight is 7,050 lbs (3,200 kg); rear digging depth is 6.5 ft (2,000 mm); front bucket width spans the front track width.

Trailer Towing & Hauling

Requires a 10,000–12,000 lb GVWR equipment trailer and a heavy 3/4-ton or 1-ton tow vehicle.

Compatible Hydraulic Attachments

Front loader features quick-attach interface; rear backhoe arm accepts specialized digging buckets.

Practical Workloads

Where the ScoopyDig Excels

Common jobsite tasks and industry applications where this machine delivers maximum efficiency.

01

Water & Sewer Trenching + Immediate Backfill

Dig 6.5 ft utility trenches with the rear arm, lay pipe, and use the front loader to backfill the entire run in one sequence.

02

Agricultural Farm & Ranch Maintenance

Dig irrigation swales, repair water lines, clean livestock pens, and transport manure with one multi-purpose tractor.

03

Residential Foundation & Footing Prep

Excavate perimeter foundation footings with the backhoe and carry crushed stone base with the front bucket.

04

Site Cleanup & Dump Truck Loading

Scoop jobsite debris, load disposal dump trucks, and level rough terrain using the 0.55 yd³ front loader bucket.

Ideal Fleets

Built for These Trades & Operators

Utility & Plumbing Contractors

Companies needing one machine that can both dig trenches and backfill/load trucks without a second operator.

Ranchers & Rural Homesteaders

Large property owners who need backhoe excavation and front loader material handling in one reliable tractor.

Municipal Maintenance Departments

Public works crews performing street repairs, water main fixes, and culvert maintenance.

Model FAQs

TYPHON ScoopyDig Compact Backhoe Loader Technical Inquiries

Detailed answers on hydraulics, fluid maintenance, transport, and operation.

Is the ScoopyDig considered a backhoe or a wheel loader?
In the KONSTRUCTZ series, the ScoopyDig lives under the Wheel Loaders category with a Backhoe Loader subtype. It provides full articulated wheel loader functionality in front and an excavator backhoe in back.
How deep can the ScoopyDig rear backhoe dig?
The rear backhoe delivers a maximum digging depth of 6.5 ft (2,000 mm), suitable for most residential water, sewer, and footing depths.
What engine powers the ScoopyDig?
The ScoopyDig is powered by a heavy-duty 42 HP turbocharged diesel engine with high hydraulic pump output.
How fast can the ScoopyDig travel?
Thanks to its 4WD hydrostatic drive system, the ScoopyDig can road between jobsite areas at up to 12.4 mph (20 km/h).
What trailer is needed to haul the ScoopyDig?
With an operating weight of 7,050 lbs, a 10,000 lb to 12,000 lb GVWR equipment trailer is recommended behind a 3/4-ton or 1-ton truck.
Fleet Synergy

Related & Complementary Equipment

Consider pairing the ScoopyDig with these complementary units for higher jobsite autonomy.

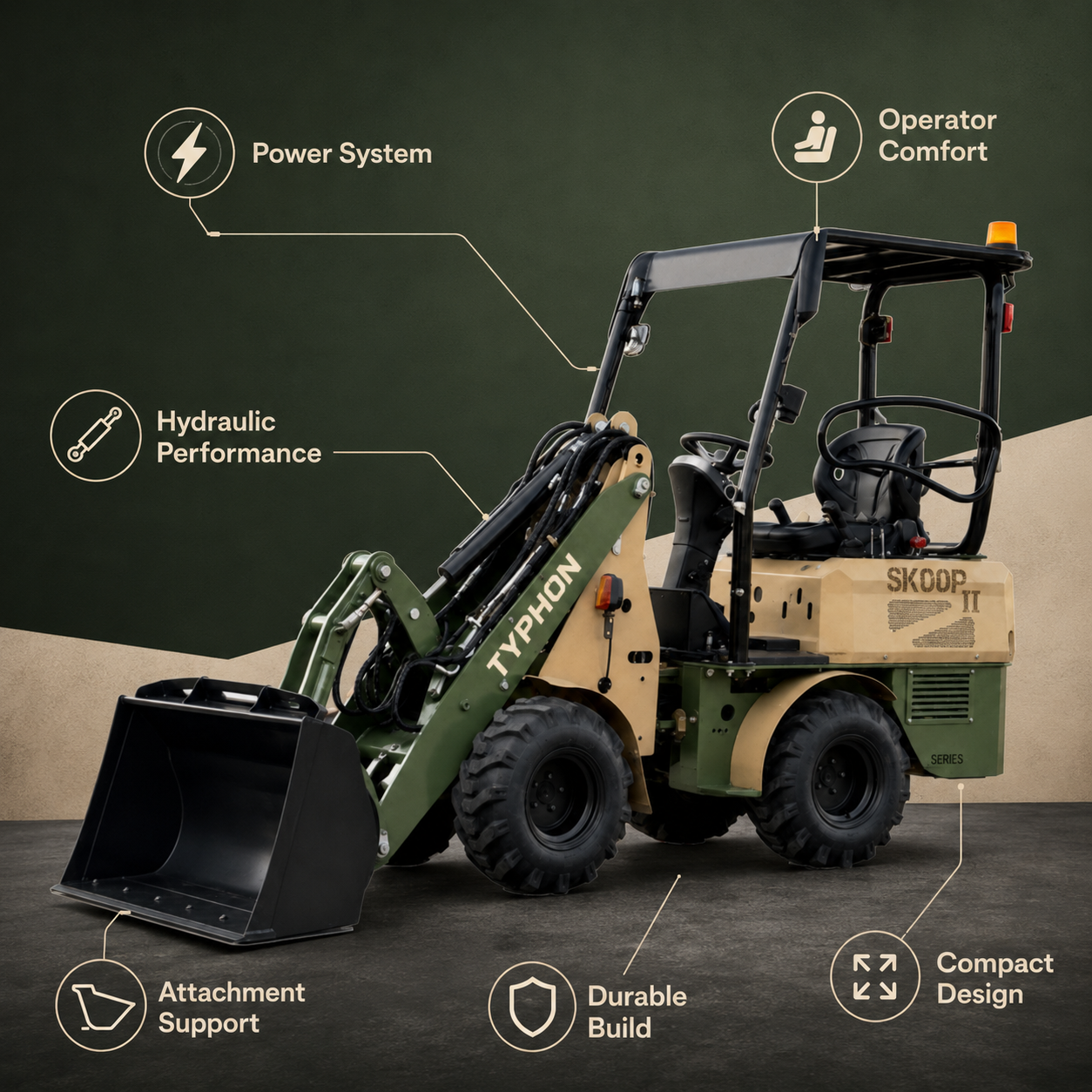

TYPHON SKOOP II
