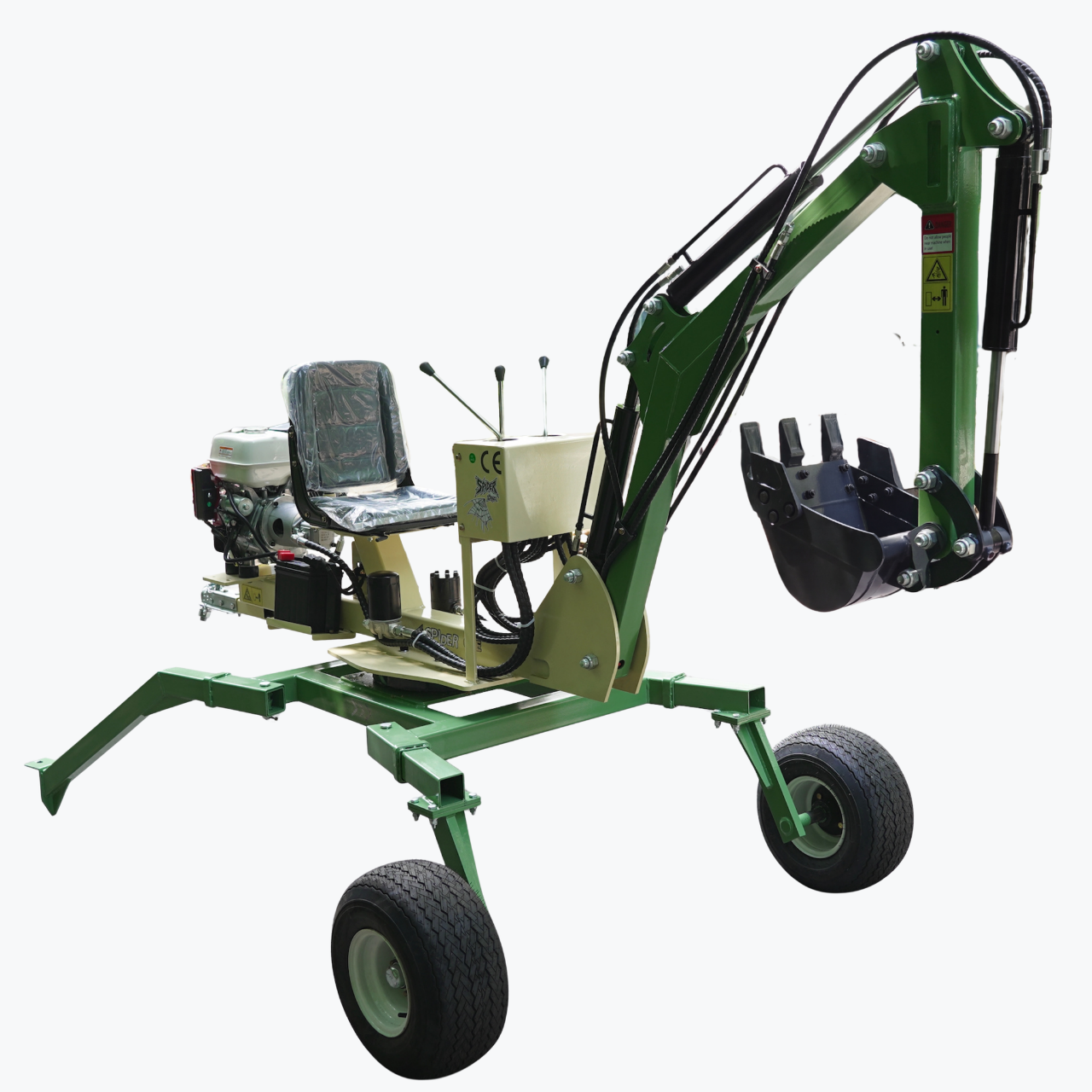

TYPHON SPIDER ONE Compact Excavator

Ultra-Portable Towable Walking Excavator with Honda GX390 Power

Operating Weight904 lbs410 kg
Engine ModelHonda GX39011 HP Gas
Max Digging Depth6.66 ft2,030 mm
Max Digging Reach6.57 ft2,004 mm
Max Dig Height7.89 ft2,404 mm
Upper Carriage Width21.65 in550 mm
Commercial ProcurementRequest Commercial Quote
Includes Standard Bucket & Hydraulic Thumb
Request Commercial QuoteFull Spec Sheet
Need quick jobsite sizing, freight quote, or wholesale terms?Call (213) 214-2203
1-Year Commercial Warranty
Nationwide Flatbed Delivery
EPA Tier 4 Final Engine
In-Stock Parts & Tech Support
Engineering Architecture

Commercial Overview: SPIDER ONE

The TYPHON SPIDER ONE is a specialized, ultra-lightweight compact excavator built for landowners, farmers, homesteaders, and contractors who need genuine backhoe digging capability in remote or restricted spaces without the expense, weight, and ground damage of a multi-ton tracked machine.

Weighing just 904 lbs (410 kg), the SPIDER ONE is powered by a dependable Honda GX390 commercial 4-stroke gasoline engine (11 HP). The engine drives a balanced hydraulic pump providing smooth, proportional control over the boom, dipper arm, and 0.71 ft³ (0.02 m³) backhoe bucket.

Despite its featherweight footprint, the machine delivers a serious 6.66 ft (2,030 mm) maximum digging depth and an impressive 7.89 ft (2,404 mm) maximum digging height. Wide stabilizer outriggers provide a solid 5.05 ft wide working base during excavation cycles.

For transport, the SPIDER ONE connects directly to a standard 2-inch hitch on an ATV, UTV, tractor, or truck. On site, the operator uses the hydraulic boom to 'walk' and pivot the machine over obstacles, muddy swales, and steep banks where conventional tracks would risk de-tracking.

Competitive Advantage

Why Contractors Choose the SPIDER ONE

Three critical engineering decisions that translate into lower operating costs and higher jobsite throughput.

Sub-1,000 lb Transport Weight

Engineering Feature
904 lb (410 kg) Operating Mass
Technical Reason
High-strength tubular steel chassis eliminates heavy cast iron counterweights and steel track assemblies.
Practical Contractor Benefit
Tow easily behind an ATV or side-by-side into off-grid forest parcels, and leave zero compaction on fragile turf.

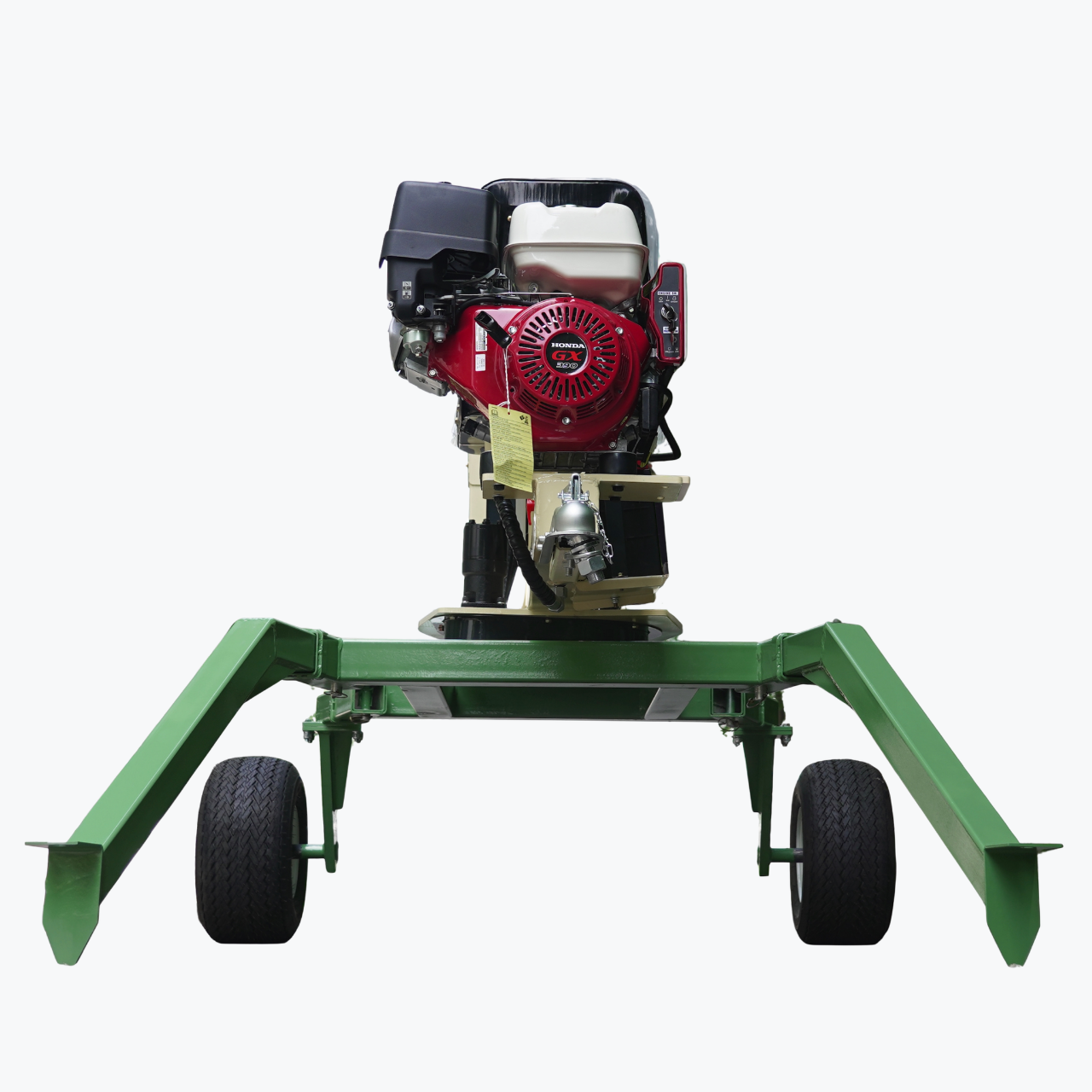

Proven Honda GX390 Reliability

Engineering Feature
11 HP OHV Commercial Gas Engine
Technical Reason
Simple, air-cooled 4-stroke overhead valve design with cast-iron cylinder sleeve and low-oil shutdown.
Practical Contractor Benefit
Easy pull or electric starting, simple maintenance without diesel fluids, and universal parts availability worldwide.

6.66 ft Deep Trenching Reach

Engineering Feature
High-Leverage Curved Backhoe Boom
Technical Reason
Curved boom design provides maximum digging depth and high over-wall clearance (6.15 ft unloading height).
Practical Contractor Benefit
Digs full-depth water lines, drainage ditches, and pier footings with small-machine ease.

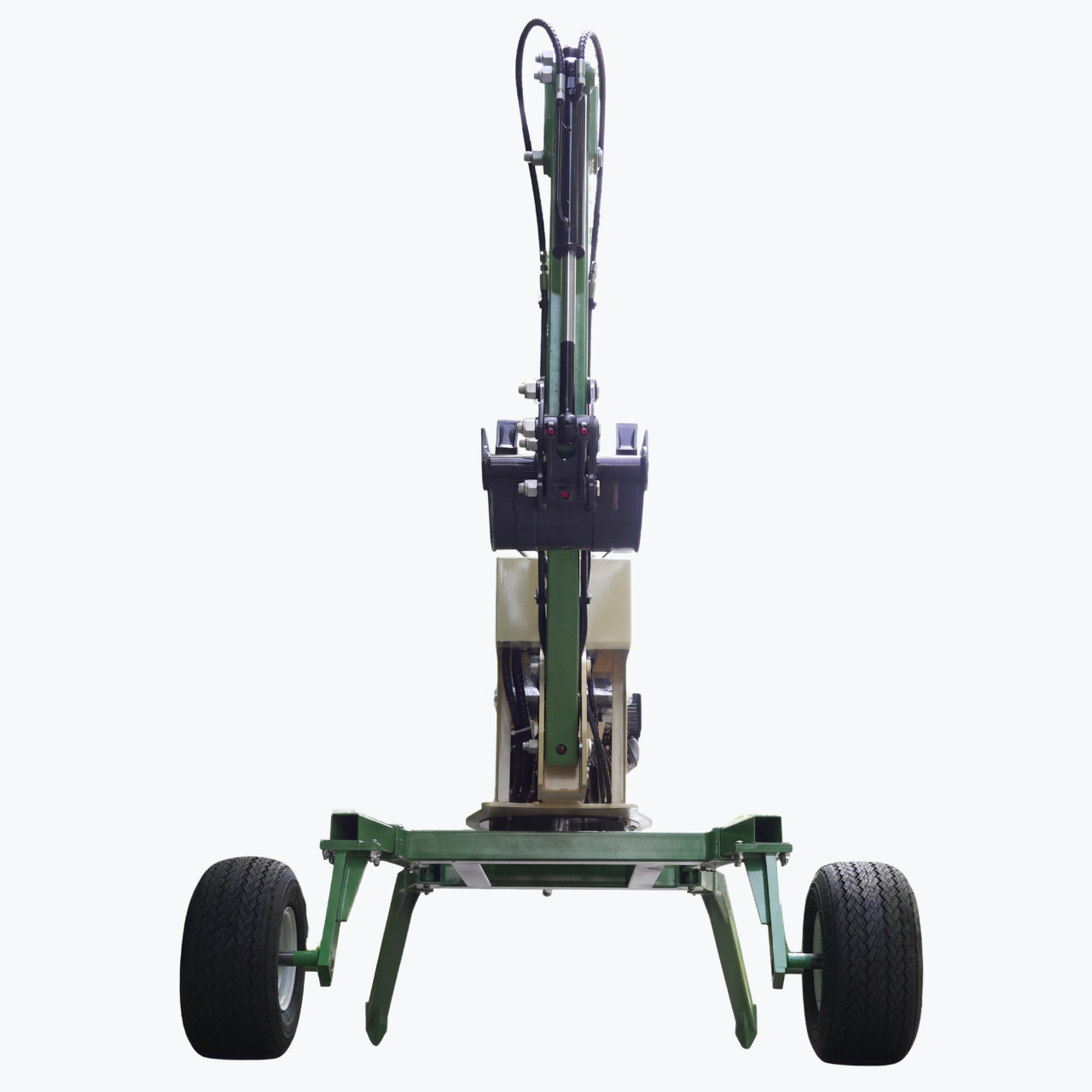

Ultra-Narrow 21.6-Inch Upper Body

Engineering Feature
550 mm Slim Carriage Width
Technical Reason
Hydraulic valves and tank are organized inline along the machine centerline.
Practical Contractor Benefit
Operates in narrow trenches, between trees, through standard 36-inch walk gates, and inside crawlspaces.
Technical Data Sheets

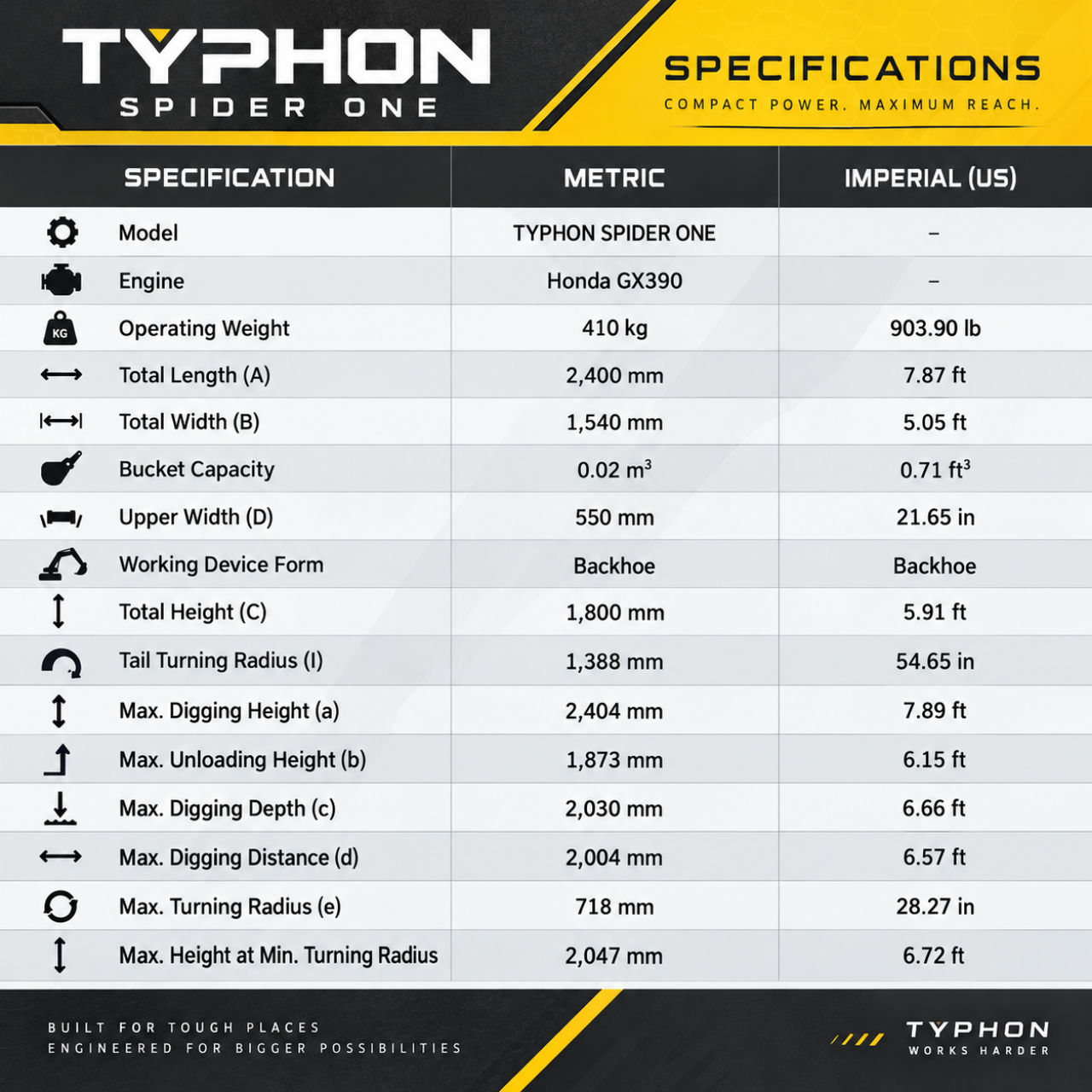

TYPHON SPIDER ONE Compact Excavator Full Specifications

Dual-unit specifications (US Standard primary, Metric secondary) verified for commercial procurement and jobsite validation.

Engine & Power

Engine ModelHonda GX390 OHV (Gasoline)
Engine Power11 HP (8.2 kW)
Starting SystemRecoil / Electric
Working Device FormBackhoe

Operating Specs & Weight

Operating Weight904 lbs (410 kg)
Max Digging Depth6.66 ft (2,030 mm)
Max Digging Reach6.57 ft (2,004 mm)
Max Digging Height7.89 ft (2,404 mm)
Max Unloading Height6.15 ft (1,873 mm)
Bucket Capacity0.71 ft³ (0.02 m³)

Dimensions & Stability

Total Length7.87 ft (2,400 mm)
Total Width5.05 ft (1,540 mm)
Total Height5.91 ft (1,800 mm)
Upper Carriage Width21.65 in (550 mm)
Tail Turning Radius54.65 in (1,388 mm)
Logistics & Tooling

Jobsite Footprint & Compatibility

Clear dimension clearances, trailer towing parameters, and auxiliary attachment options.

Dimensions & Access Clearance

Operating dimensions: 7.87 ft long × 5.05 ft wide × 5.91 ft high. Upper carriage width is just 21.65 inches.

Trailer Towing & Hauling

Equipped with road wheels and standard 2-inch ball coupler. Can be towed behind an ATV, UTV, tractor, or light truck.

Compatible Hydraulic Attachments

Accepts specialized pin-on trenching and ditch cleaning buckets.

Practical Workloads

Where the SPIDER ONE Excels

Common jobsite tasks and industry applications where this machine delivers maximum efficiency.

01

Remote Off-Grid Property Excavation

Tow behind a UTV deep into woodland trails to dig drainage ditches, water lines, and cabin footings.

02

Agricultural Drainage Ditch Clearing

Position outriggers along ditch banks to scoop accumulated silt, mud, and vegetative debris.

03

Residential Landscaping & Fence Line Digging

Walk through 36-inch gates to dig tree root balls, irrigation trenches, and garden retaining walls.

04

Septic Field Repair with Zero Compaction

Repair septic absorption lines without heavy machine tracks crushing the delicate drainfield soil.

Ideal Fleets

Built for These Trades & Operators

Homesteaders & Acreage Owners

Rural property owners needing a capable backhoe without the $30k+ price tag of a tractor backhoe.

Off-Grid Builders & Remote Crews

Contractors working where access roads cannot support 5-ton flatbed equipment haulers.

Landscapers & Tree Specialists

Specialists requiring sub-1,000 lb ground-friendly digging capability on pristine lawns.

Model FAQs

TYPHON SPIDER ONE Compact Excavator Technical Inquiries

Detailed answers on hydraulics, fluid maintenance, transport, and operation.

How does the SPIDER ONE move on the jobsite?
For short movements, the operator uses the hydraulic digging boom and bucket to push, pull, and steer the machine on its wheels and stabilizers. For longer transit, it hitches directly to an ATV, UTV, or truck.
Can my ATV or UTV tow the SPIDER ONE?
Yes. Weighing 904 lbs (410 kg), it is within the towing capacity of most standard 500cc+ utility ATVs and side-by-sides.
How deep can the SPIDER ONE dig?
The SPIDER ONE delivers a maximum digging depth of 6.66 ft (2,030 mm) and a maximum digging reach of 6.57 ft (2,004 mm).
What maintenance is required on the SPIDER ONE?
Maintenance is very simple: routine oil changes on the Honda GX390 gas engine, periodic hydraulic oil and filter changes, and greasing boom pivot pins.
Is the SPIDER ONE stable when digging?
Yes. Its wide 5.05 ft outrigger footprint anchors the machine firmly into the turf or soil during digging strokes.
Fleet Synergy

Related & Complementary Equipment

Consider pairing the SPIDER ONE with these complementary units for higher jobsite autonomy.

TYPHON KUVUO 2.5

TYPHON KUVUO 2.5

For contractors who need high-production motorized rubber tracks for commercial trenching.

Compare Alternative →

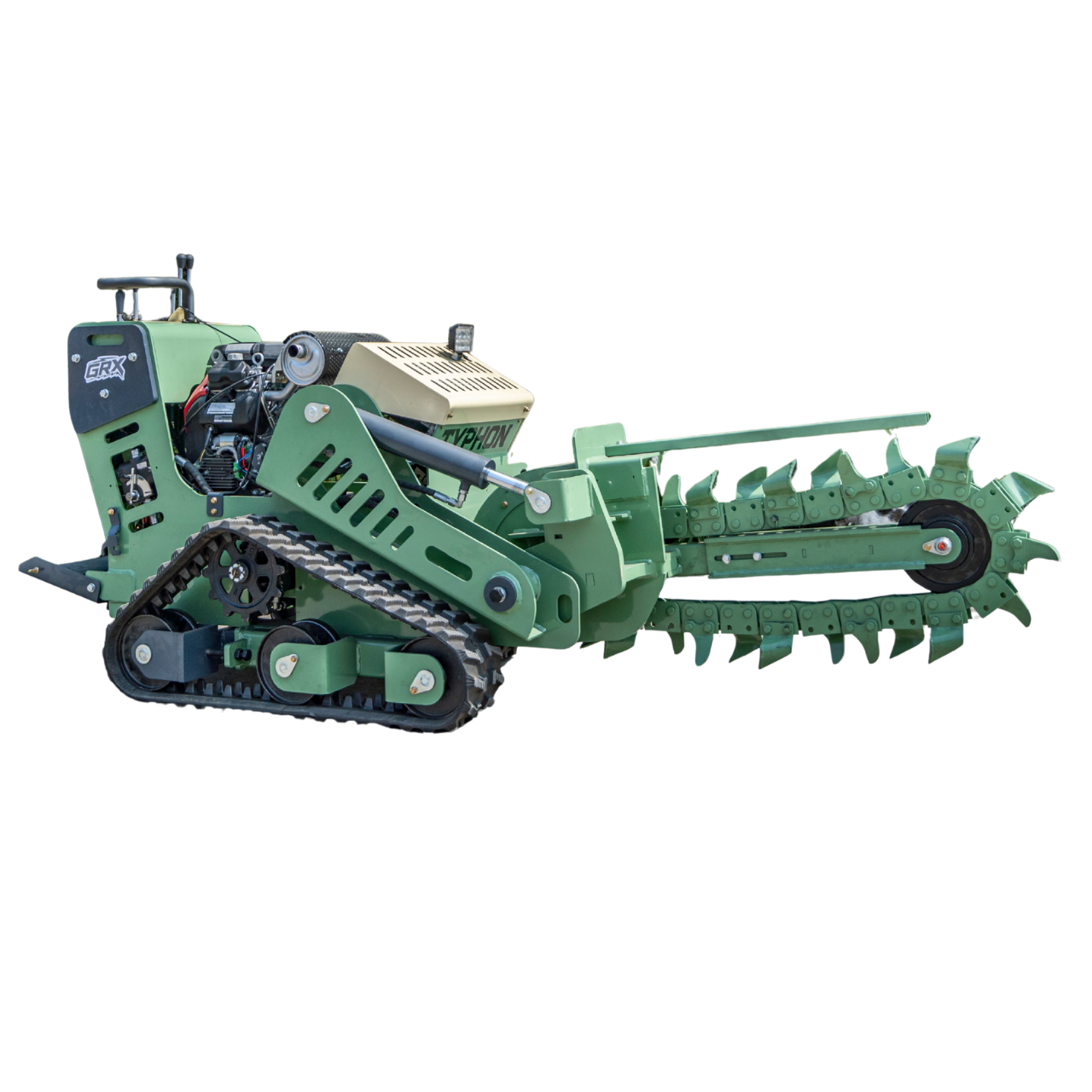

GroundRipper GRX1
